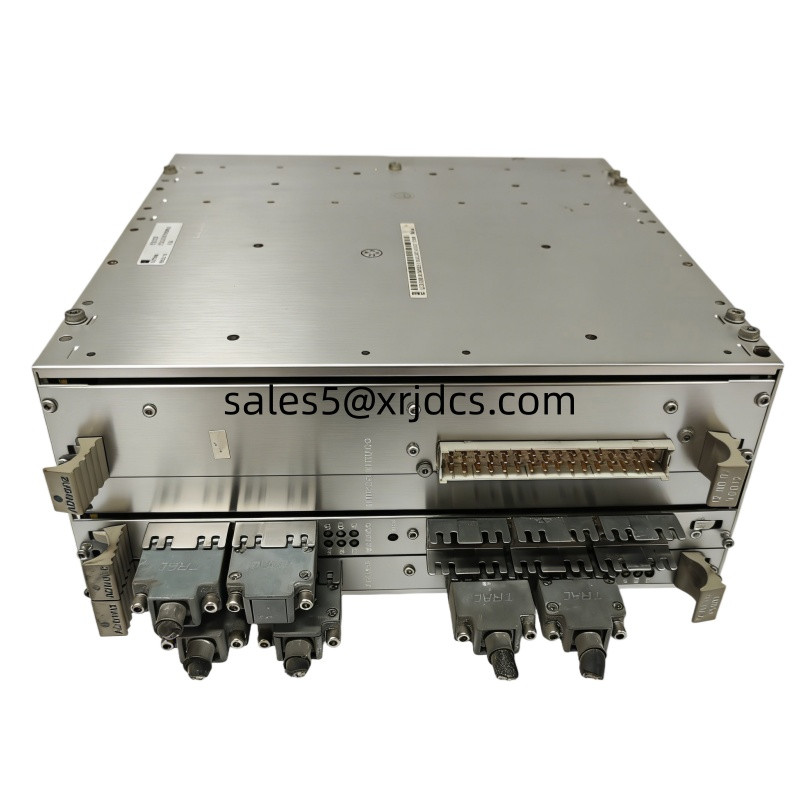

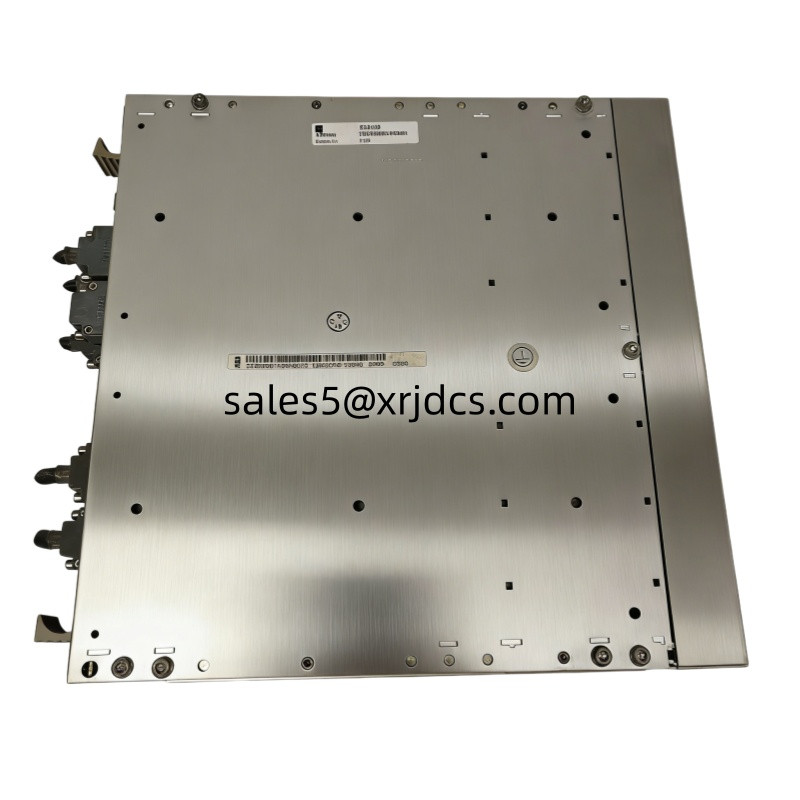

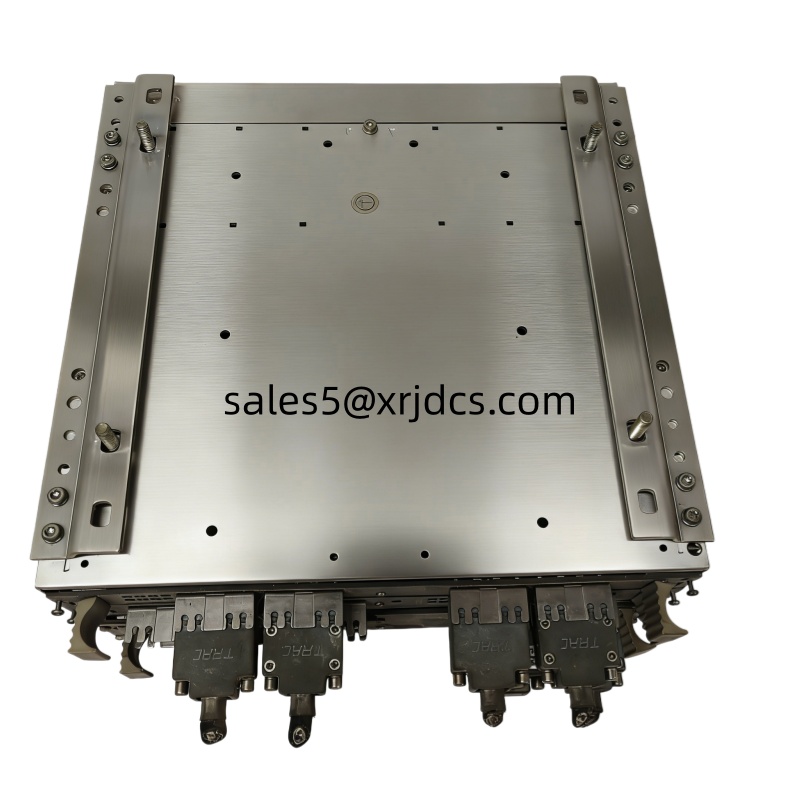

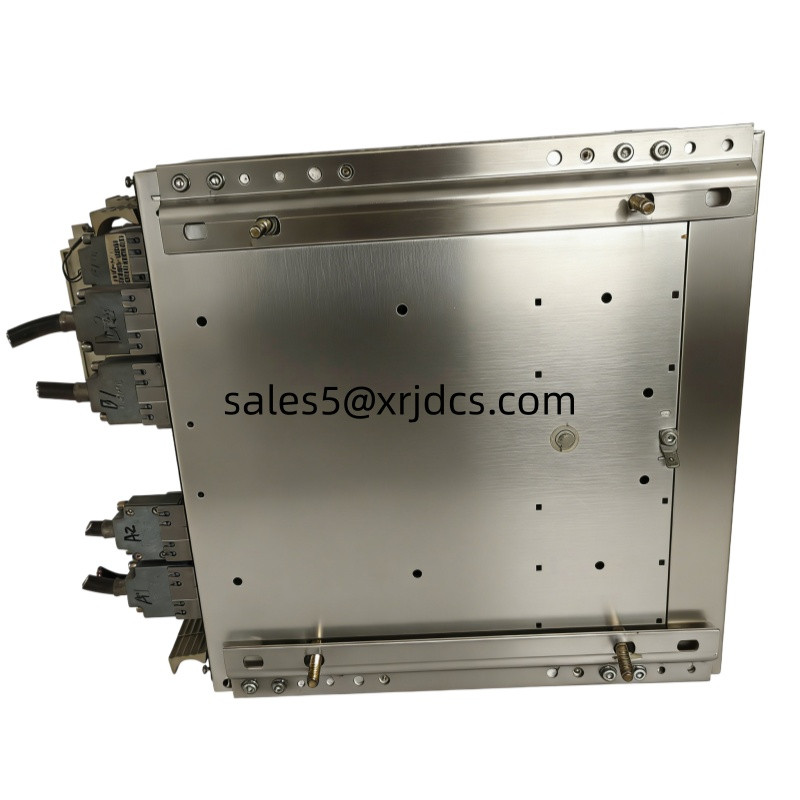

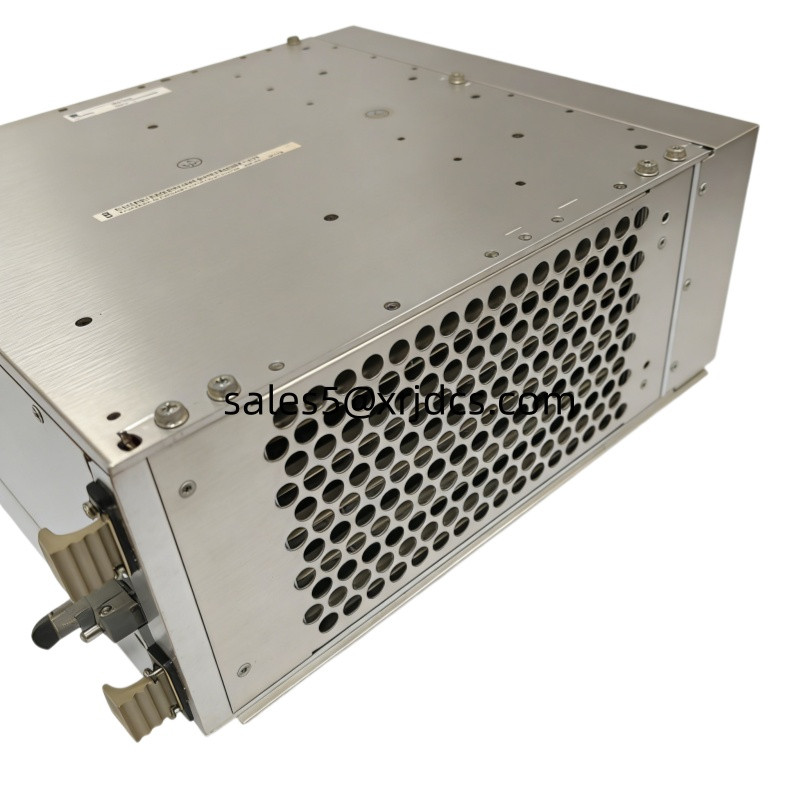

ABB 12KG04J-V0002 / 3EGM031400R0002 - Industrial Automation Control Module

Product Overview

• Multi-channel digital and analog I/O capabilities
• High-precision signal conversion with ±0.05% accuracy
• Input/output/power isolation (up to 1500V AC)
• Wide operating temperature range (-25°C to +60°C)
• IP20 protection rating for industrial environments
• Modular design for easy installation and maintenance
• Compatible with ABB Advant Controller and Symphony systems
• Supports multiple communication protocols (PROFIBUS, Modbus, RS-485)
• Fast response time (≤1ms for digital inputs)
• Certified to CE, UL, RoHS international standards

• Email: sales5@xrjdcs.com
• Phone: +86-18250705533
• WhatsApp: +86-18250705533
• Website: www.xrj-plc.com

Technical Specifications

Basic Specifications

Performance Specifications

Electrical Specifications

Physical Specifications

Environmental Specifications

Certification Standards

Product Features

1. Advanced Signal Processing Capabilities

• Multi-Channel Support: Configurable digital input/output channels (up to 16DI/16DO) providing flexible signal management
• High-Precision Conversion: ±0.05% signal conversion accuracy ensures reliable data acquisition and control
• Fast Response Times: ≤1ms digital input response and ≤10ms digital output response for high-speed applications
• Mixed Signal Types: Compatible with 24V DC digital signals and 4-20mA analog signals
• Signal Isolation: 500V AC channel-to-channel isolation prevents signal interference and ground loops

2. Robust Isolation and Protection Design

• Tri-Isolation Architecture: Input, output, and power supply isolation up to 1500V AC
• EMC Immunity: Designed to withstand electromagnetic interference common in industrial settings
• Overvoltage Protection: Built-in protection against voltage surges and transients
• Short-Circuit Protection: Output channels protected against fault conditions
• Reverse Polarity Protection: Prevents damage from incorrect wiring

3. Extended Environmental Adaptability

• Wide Temperature Range: Operating temperature from -25°C to +60°C accommodates diverse environments
• High Humidity Tolerance: Operates reliably at 20% to 95% RH (non-condensing)
• Industrial Vibration Resistance: Withstands mechanical vibrations typical of manufacturing facilities
• Dust and Particle Protection: IP20 rating prevents dust ingress in controlled environments
• Altitude Compensation: Maintains performance at altitudes up to 3,048 meters

4. Flexible Communication and Integration

• PROFINET Interface: Native PROFINET support for direct network integration
• PROFIBUS DP: PROFINET V1 compatibility with traditional industrial networks
• Modbus Protocol: Modbus RTU/TCP for legacy system connectivity
• ABB System Integration: Native support for ABB Symphony and Advant Controller systems
• Third-Party Compatibility: Works with various PLC and DCS platforms

5. Modular Design for Easy Maintenance

• Modular Construction: Individual modules can be replaced quickly without system shutdown
• DIN Rail Mounting: Standard mounting method for easy installation
• Diagnostic LEDs: Visual status indicators for quick fault identification
• Hot-Swap Capability: Module replacement without powering down the system (with proper precautions)
• Tool-Free Wiring: Screw terminals enable fast, secure connections

6. High Reliability and Long Service Life

• Industrial-Grade Design: High-quality components rated for continuous industrial operation
• Extended MTBF: Mean Time Between Failures exceeds 218,000 hours
• Proven Track Record: Thousands of installations worldwide with documented reliability
• Quality Testing: Each module undergoes comprehensive testing before shipment
• Warranty Coverage: 12-month warranty on all products

System Compatibility

Supported ABB Systems

• ABB Symphony Series: Primary compatibility platform for distributed control systems
• ABB Advant Controller: Full compatibility with Advant Controller systems
• ABB Freelance System: Support for Freelance distributed control applications
• ABB Harmony Systems: Integration with Harmony rack systems
• ABB 800xA System: Compatible with 800xA collaborative automation systems

Communication Protocols

• PROFINET: Industrial Ethernet communication for real-time control
• PROFIBUS DP: Traditional fieldbus communication for distributed I/O
• Modbus RTU/TCP: Widely adopted protocol for industrial networking
• RS-485: Serial communication interface for remote I/O modules

Controller Compatibility

• ABB Controllers: Symphony, Advant, Freelance, and Harmony series
• Third-Party PLCs: Siemens S7, Schneider Modicon, Allen-Bradley ControlLogix
• DCS Systems: Emerson DeltaV, Yokogawa Centum, Honeywell Experion
• PC-Based Controllers: Beckhoff TwinCAT, B&R Automation Studio

Applications

1. Power Generation and Distribution

• Thermal Power Plants: Control of boiler systems, turbine governor systems, and auxiliary equipment
• Hydroelectric Plants: Governor control, turbine automation, and water management systems
• Nuclear Power Plants: Safety-related control systems with stringent quality requirements
• Substation Automation: Breaker control, protection system interfaces, and monitoring systems
• Renewable Energy: Wind turbine control, solar inverter interfaces, and grid integration systems

2. Oil and Gas Industry

• Refinery Automation: Process control units, distillation column control, and safety instrumented systems
• Petrochemical Plants: Reactor control, separator systems, and material handling automation
• Pipeline Systems: Pump station control, valve actuation, and pipeline monitoring
• Offshore Platforms: Drilling equipment control, production platform automation, and safety systems
• LNG Plants: Liquefaction process control, storage tank monitoring, and loading systems

3. Manufacturing and Process Industries

• Automotive Manufacturing: Assembly line control, welding robot interfaces, and quality inspection systems
• Metal Processing: Rolling mill control, heat treatment systems, and CNC machine interfaces
• Food and Beverage: Process control, packaging automation, and quality monitoring systems
• Pharmaceutical: Cleanroom automation, batch processing control, and compliance monitoring
• Chemical Processing: Reactor control, mixing systems, and hazardous material handling

4. Water and Wastewater Treatment

• Water Treatment Plants: Filtration control, chemical dosing, and water quality monitoring
• Wastewater Treatment: Aeration control, sludge handling, and effluent monitoring
• Pump Stations: Pump control, flow monitoring, and level regulation systems
• Desalination Plants: Reverse osmosis control, membrane monitoring, and product water quality assurance

5. Building Automation

• HVAC Control: Air handling unit control, chiller plant optimization, and energy management
• Lighting Systems: Automated lighting control, daylight harvesting, and energy efficiency optimization
• Security Systems: Access control, surveillance integration, and emergency response coordination
• Fire Safety: Smoke detection, fire suppression control, and evacuation system management

6. Transportation Infrastructure

• Railway Systems: Signal control, traction power management, and station automation
• Metro Systems: Train control, platform door operation, and tunnel ventilation systems
• Airport Systems: Baggage handling, runway lighting, and fuel management systems
• Port Facilities: Crane control, cargo handling, and terminal automation

Installation and Configuration

Pre-Installation Requirements

1. Power Supply Verification: Confirm 24V DC power supply is available and meets voltage requirements (19.2V-26.4V DC)
2. Environmental Conditions: Verify operating environment meets temperature (-25°C to +60°C) and humidity (20%-95% RH) specifications
3. Mounting Space: Ensure adequate space for DIN rail or panel mounting with required clearance
4. Grounding System: Verify proper grounding infrastructure is available (ground resistance ≤4Ω)
5. Communication Network: Confirm network infrastructure is compatible with selected communication protocol
6. Safety Precautions: Follow all local electrical safety regulations and ABB installation guidelines

Hardware Installation Procedure

Step 1: Mechanical Installation

• Mount the module on a 35mm DIN rail or panel using provided mounting hardware
• Ensure proper orientation as indicated by module labeling
• Secure all mounting screws to prevent vibration-induced loosening
• Maintain required clearance around the module for airflow and accessibility

Step 2: Power Connections

• Connect 24V DC power supply to the designated power terminals
• Observe proper polarity: Positive (+) to positive terminal, Negative (-) to negative terminal
• Use appropriate wire gauge (recommended 0.5mm² to 1.5mm²) for current carrying capacity
• Install overcurrent protection as required by local electrical codes

Step 3: Signal Connections

• Connect field devices (sensors, switches, actuators) to appropriate I/O terminals
• Use shielded twisted-pair cables for analog signals to minimize electromagnetic interference
• Connect cable shields to the module's ground terminal following single-point grounding practice
• Tighten all terminal screws to specified torque values

Step 4: Network Communication

• Connect PROFINET/PROFIBUS/RS-485 cable to the designated communication port
• Configure IP address settings according to network requirements
• Verify network cable category meets specification (Cat5e or higher for Ethernet)
• Test network connectivity before commissioning

Software Configuration

Step 1: Module Identification

• Power up the system and allow the module to initialize
• Use ABB engineering software (Control Builder, Automation Builder, or compatible third-party software)
• Scan for connected devices and identify the 12KG04J-V0002 module by its hardware address

Step 2: Parameter Configuration

• Configure module parameters using configuration software or dip switches:
  • Set input signal types (voltage, current, digital)
  • Configure output types (relay, transistor)
  • Set communication parameters (baud rate, IP address)
  • Configure diagnostic and alarm settings



Step 3: I/O Mapping

• Map physical I/O channels to logical addresses in the control program
• Define input channel signal ranges and scaling factors
• Configure output channel safety interlocks and limits
• Set up alarm thresholds and diagnostic monitoring

Step 4: Testing and Validation

• Perform input signal testing by applying known signals to input channels
• Verify input readings match expected values within tolerance (±0.05%)
• Test output channels by activating them and measuring actual output
• Validate communication protocol operation and data exchange rates

Commissioning Checklist

• All mechanical mounting is secure and proper
• Power supply voltage is within specification (19.2V-26.4V DC)
• All signal connections are properly terminated
• Communication network is functioning correctly
• Module parameters are configured according to application requirements
• Input signals are reading correctly
• Output channels are responding appropriately
• Diagnostic indicators show normal operation
• Safety interlocks are tested and functional
• System documentation is complete and updated

Troubleshooting Guide

Common Issues and Solutions

Issue 1: Module "PWR" LED Not Illuminated

• Input voltage outside specified range (below 19.2V DC or above 26.4V DC)
• Power supply failure or insufficient current capacity
• Incorrect power wiring polarity
• Blown internal fuse or damaged power circuitry

1. Measure input voltage at power terminals with multimeter
2. Verify voltage is within 19.2V-26.4V DC range (±10% tolerance)
3. Check power supply output capacity meets module requirements
4. Inspect power wiring for correct polarity (positive to positive terminal)
5. Verify all connections are tight and not corroded
6. If voltage is normal but LED still off, replace the module

• Use regulated 24V DC power supply with adequate current capacity
• Install overvoltage protection devices as recommended
• Regularly inspect power supply and wiring connections

Issue 2: Digital Input Signals Unstable or Flickering

• Electromagnetic interference from nearby equipment
• Long cable runs without proper shielding
• Ground loops or floating signal grounds
• Sensor contact bounce or dirty contacts
• Input filter settings too sensitive

1. Check cable routing and distance from high-power equipment
2. Verify input cables are properly shielded with shield grounded at one point
3. Inspect all ground connections and verify common ground reference
4. Clean or replace sensors with contact bounce issues
5. Adjust input filter time constants in module configuration
6. Replace cables with higher-quality shielded twisted-pair if necessary

• Use shielded cables for all signal wiring
• Maintain proper distance from power cables and motors
• Implement single-point grounding practice
• Use sensors with debounce circuits or software debounce

Issue 3: Digital Output Channels Not Activating

• Output load exceeds channel current rating
• External power supply to load not connected
• Blown output fuse or damaged output circuit
• Software configuration error or interlock active
• Wiring connection fault

1. Measure load current to ensure it's within specification (≤2A for relay, ≤0.5A for transistor)
2. Verify external power supply to load is connected and operational (24V DC)
3. Check for blown output fuses and replace if necessary
4. Review software configuration to ensure channel is enabled and interlocks are cleared
5. Measure output voltage at terminals while attempting activation
6. If no output voltage and configuration is correct, replace the module

• Ensure load current does not exceed channel ratings
• Use appropriate fusing or circuit protection for loads
• Implement interlocks in software to prevent overload conditions
• Regularly check load current during operation

Issue 4: Analog Signal Readings Inaccurate

• Improper scaling or calibration in software
• Signal interference or noise
• Faulty sensor or transmitter
• Ground potential differences
• Environmental temperature affecting circuitry

1. Apply known reference signal to input channel
2. Verify reading matches expected value within ±0.05% tolerance
3. Check scaling factors and calibration settings in software
4. Inspect sensor and transmitter for proper operation
5. Measure ground potential differences between sensor and module
6. Verify operating temperature is within specification (-25°C to +60°C)
7. Replace sensor or module if discrepancy persists

• Implement regular calibration schedule for critical measurements
• Use high-quality sensors with proper signal conditioning
• Maintain consistent environmental conditions
• Perform periodic accuracy verification tests

Issue 5: Communication Errors or Loss

• Network cable fault or disconnection
• Incorrect IP address or network configuration
• Network congestion or high traffic load
• EMC interference affecting network signals
• Module network port failure

1. Inspect network cable for damage and proper termination
2. Verify physical connection is secure at both ends
3. Check IP address configuration matches network requirements
4. Ping module IP address to test network connectivity
5. Monitor network traffic for congestion or broadcast storms
6. Test with known-good network cable
7. Replace module if communication fails with multiple cables

• Use high-quality industrial Ethernet cables
• Implement network segmentation for critical applications
• Regularly monitor network performance and traffic
• Provide adequate network bandwidth and avoid oversubscription

Issue 6: Module Overheating

• Inadequate ventilation or airflow
• Ambient temperature exceeding specification (+60°C)
• High output load causing excessive power dissipation
• Faulty cooling fans or blocked vents
• Direct sunlight or heat source near module

1. Measure ambient temperature near module
2. Verify operating temperature is within -25°C to +60°C range
3. Check for blocked vents or restricted airflow
4. Inspect cooling fans (if applicable) for proper operation
5. Reduce output load if possible
6. Verify module is not exposed to external heat sources
7. Improve cabinet ventilation or add forced air cooling

• Provide adequate cabinet ventilation and cooling
• Avoid installing near heat-generating equipment
• Monitor operating temperatures regularly
• Implement temperature alarms for critical applications

Product Advantages

1. Exceptional Reliability

• Industrial-Grade Design: Built with high-quality components rated for continuous industrial operation
• Extended Temperature Range: Operates reliably from -25°C to +60°C, accommodating diverse environments
• EMC Immunity: Designed to withstand electromagnetic interference common in industrial settings
• High MTBF: Mean Time Between Failures exceeds 218,000 hours of operation
• Proven Track Record: Thousands of installations worldwide with documented reliability

2. High Precision and Accuracy

• ±0.05% Conversion Accuracy: Maintains high precision across operating range
• Fast Response Times: ≤1ms digital input and ≤10ms digital output response for high-speed applications
• Minimal Signal Error: Low noise design ensures clean signal transmission
• Consistent Performance: Stable operation over temperature and time
• Calibration Stability: Maintains accuracy over extended periods without frequent recalibration

3. Comprehensive Protection

• Input/Output/Power Isolation: 1500V AC isolation prevents ground loops and interference
• Overvoltage Protection: Built-in protection against voltage surges and transients
• Short-Circuit Protection: Output channels protected against fault conditions
• Reverse Polarity Protection: Prevents damage from incorrect wiring
• Thermal Protection: Automatic shutdown if operating temperature exceeds safe limits

4. Easy Installation and Maintenance

• Modular Construction: Individual modules can be replaced quickly
• DIN Rail Mounting: Standard mounting method for easy installation
• Diagnostic LEDs: Visual status indicators for quick fault identification
• Hot-Swap Capability: Module replacement without system shutdown
• Tool-Free Wiring: Screw terminals enable fast, secure connections

5. Flexible Integration Options

• Protocol Support: PROFINET, PROFIBUS, Modbus, RS-485 compatibility
• ABB System Integration: Native support for ABB controllers and systems
• Third-Party Compatibility: Works with various PLC and DCS platforms
• Scalable Architecture: Easily expandable for growing system requirements
• Open Standards: Complies with international standards for interoperability

6. Cost-Effective Operation

• Energy Efficiency: Low power consumption (2.5W max) reduces operating costs
• Reduced Downtime: High reliability minimizes production interruptions
• Long Service Life: Extended lifespan reduces replacement frequency
• Easy Maintenance: Modular design lowers maintenance time and costs
• Competitive Pricing: Cost-effective solution compared to alternatives

Why Choose Our ABB 12KG04J-V0002?

Quality Assurance

• 100% Genuine ABB Products: Authentic ABB modules from authorized sources
• Comprehensive Testing: Each module undergoes rigorous testing before shipment
• Full Warranty Coverage: 12-month warranty on all products
• Product Traceability: Complete documentation and certification support
• Quality Certification: ISO 9001 certified quality management system

Technical Expertise

• Application Specialists: Experienced engineers with deep ABB product knowledge
• System Integration Support: Expert guidance for seamless system integration
• Training Services: Comprehensive training on installation, operation, and maintenance
• 24/7 Technical Support: Round-the-clock assistance for critical applications
• Global Support Network: Access to ABB's worldwide support infrastructure

Customer Service Excellence

• Responsive Team: Dedicated customer support representatives
• Fast Delivery: Efficient order processing and logistics
• Competitive Pricing: Market-competitive pricing for genuine products
• Flexible Payment Terms: Multiple payment options to suit customer needs
• Long-Term Partnership: Commitment to ongoing customer success

Ordering Information

Product Specifications for Ordering

Payment Terms

• T/T (Telegraphic Transfer) : Wire transfer for international orders
• PayPal: Convenient online payment option
• Western Union: Fast money transfer service
• Credit Card: Accepted through secure payment gateway
• Trade Assurance: For additional buyer protection

Shipping Information

• Shipping Method: DHL, FedEx, UPS, EMS (customer's choice)
• Delivery Time: 3-7 business days depending on destination
• Packaging: Original ABB packaging with additional protective wrapping
• Tracking: Full tracking number provided for all shipments
• Insurance: Included for customer peace of mind
• Global Delivery: Shipping available to worldwide destinations

Request for Quote (RFQ)

• Required quantity
• Destination country and city
• Preferred shipping method
• Any specific delivery requirements
• Company information (name, address, contact person)

• Email: sales5@xrjdcs.com
• Phone: +86-18250705533
• WhatsApp: +86-18250705533
• Website: www.xrj-plc.com

Frequently Asked Questions (FAQ)

Q1: What is the main function of ABB 12KG04J-V0002 module?

Q2: What communication protocols does the module support?

Q3: What is the operating temperature range of the module?

Q4: How many I/O channels does the module provide?

Q5: What is the isolation voltage rating of the module?

Q6: Is the module compatible with third-party PLC systems?

Q7: What is the response time of the module?

Q8: What certifications does the module have?

Q9: How do I install and configure the module?

Q10: What is the warranty period for the module?

Technical Support and Services

Pre-Sales Support

• Product Selection: Expert guidance in selecting the right module for your application
• System Design: Assistance with system architecture and integration planning
• Cost Analysis: Detailed quotation and total cost of ownership analysis
• Technical Consultation: Free consultation on technical requirements and specifications

After-Sales Support

• Installation Assistance: On-site or remote installation guidance
• Commissioning Support: Expert help with system startup and testing
• Training Programs: Comprehensive training for operators and maintenance personnel
• Troubleshooting: 24/7 technical support for resolving operational issues

Maintenance Services

• Preventive Maintenance: Scheduled maintenance programs to ensure optimal performance
• Repair Services: Fast turnaround repair services for faulty modules
• Spare Parts Supply: Immediate availability of spare parts for quick replacement
• Calibration Services: Regular calibration to maintain accuracy and performance

Contact Us

• Email: sales5@xrjdcs.com
• Phone: +86-18250705533
• WhatsApp: +86-18250705533
• Website: www.xrj-plc.com

• Monday to Friday: 8:00 AM - 6:00 PM (Beijing Time, GMT+8)
• Saturday: 9:00 AM - 5:00 PM (Beijing Time, GMT+8)
• Emergency Support: Available 24/7 for critical applications

Summary

• High-precision signal conversion with ±0.05% accuracy
• Fast response times (≤1ms DI, ≤10ms DO) for high-speed applications
• Comprehensive isolation protection (up to 1500V AC)
• Wide operating temperature range (-25°C to +60°C)
• Multiple communication protocols for flexible integration
• Modular design for easy installation and maintenance
• Proven reliability with MTBF exceeding 218,000 hours
• Comprehensive certification to international standards

Keywords for SEO
