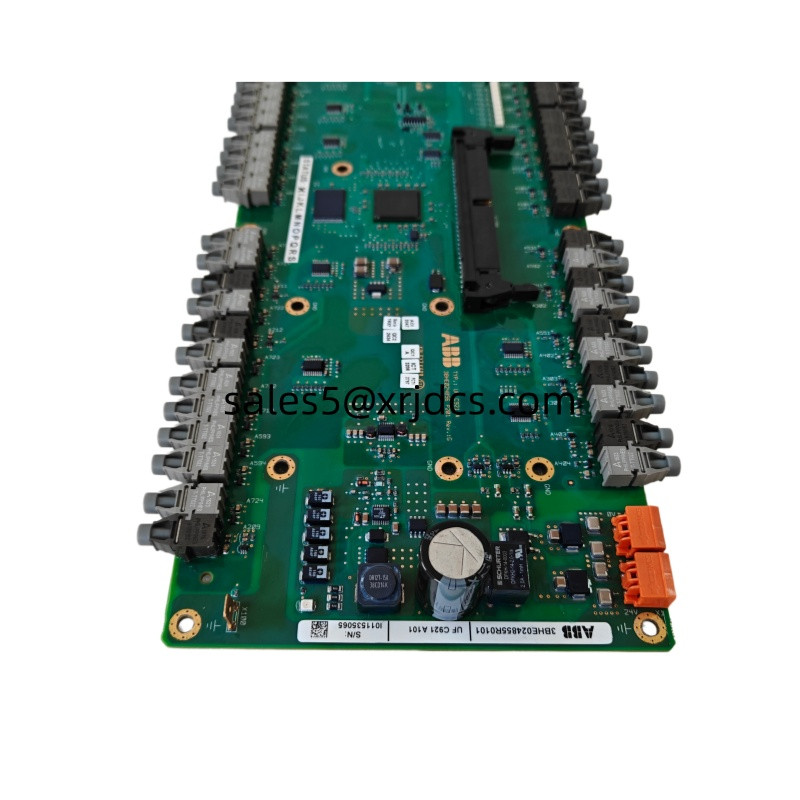

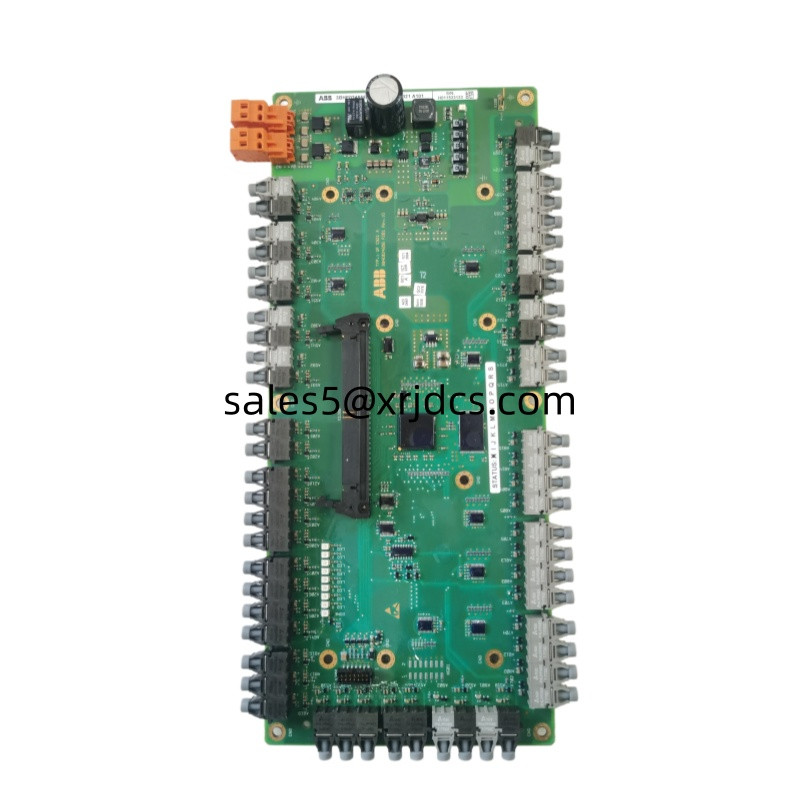

ABB UFC921A101 3BHE024855R0101 INT-2 Board – High-Performance Control Interface Module for Industrial Automation

Product Overview

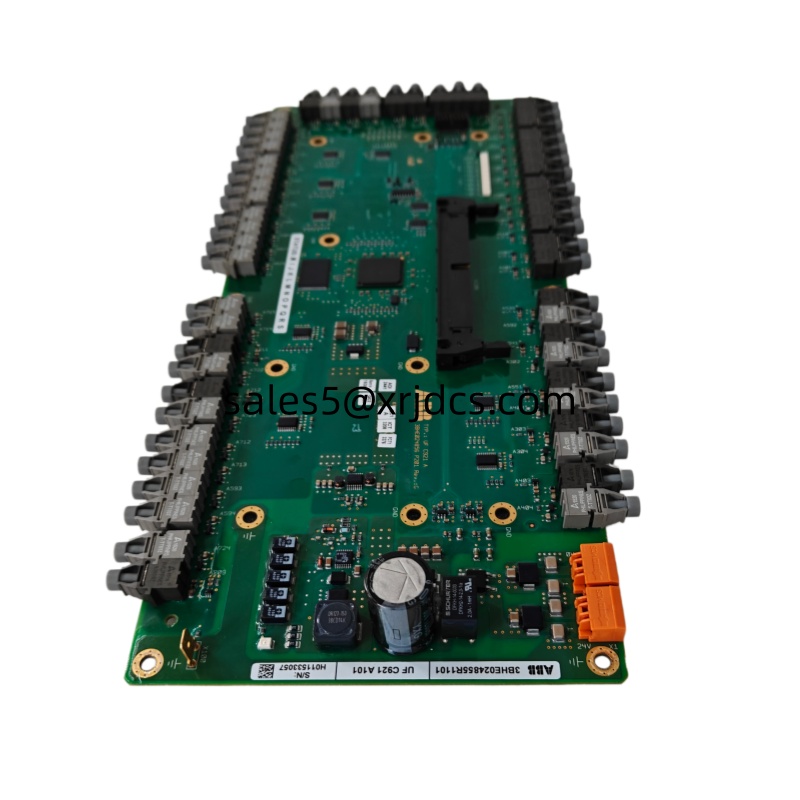

The ABB UFC921A101 3BHE024855R0101 is a sophisticated control board and interface module designed for critical industrial automation applications. As part of ABB's renowned product portfolio, this INT-2 board serves as a core component in excitation systems, frequency converters, and process control systems. Engineered with advanced technology and precision manufacturing, UFC921A101 delivers exceptional performance, reliability, and seamless integration capabilities for demanding industrial environments.

This multifunctional control board is primarily utilized in ABB UNITROL 5000 excitation systems, ACS frequency converters, and Advant Master control systems, making it an indispensable element in power generation, motor control, and industrial automation processes.

Key Features & Technical Specifications

1. Comprehensive I/O Capabilities

• 8 Analog Inputs: Supporting 0-10V, 0-20mA, and 4-20mA signal ranges for versatile sensor integration
• 4 Analog Outputs: Providing 0-10V, 0-20mA, and 4-20mA output options for precise actuator control
• 16 Digital Inputs: 24V DC compatible for robust digital signal acquisition
• 8 Digital Outputs: 24V DC output channels for switching and control applications

2. Advanced Communication Protocols

• Masterbus 300: ABB's proprietary high-speed communication protocol for seamless system integration
• Modbus RTU: Industry-standard serial communication protocol for broad compatibility
• Profibus DP: Widely adopted fieldbus protocol for industrial automation networks
• CANopen: Real-time communication protocol for distributed control systems
• Data Refresh Rate: ≤10ms for real-time control and monitoring

3. Industrial-Grade Durability

• Operating Temperature Range: -25°C to +70°C (some models: -20°C to +60°C or -10°C to +50°C)
• Storage Temperature Range: -40°C to +85°C
• Humidity Range: 5% to 95% RH (non-condensing)
• Surface Coating Protection: Varnished finish for enhanced protection against harsh environments
• Hot Swappable Design: Enables maintenance without system shutdown

4. Precision Control & Performance

• Dual Channel AVR System: Automatic Voltage Regulation with redundancy for excitation systems
• Millisecond Response Time: Rapid adjustment capabilities for critical control applications
• High Control Accuracy: Precise voltage and reactive power regulation for generators
• Direct Torque Control (DTC): Advanced motor control technology for optimal performance

5. Physical Specifications

• Dimensions: 333mm × 160mm × 28mm (Length × Width × Height)
• Weight: 0.34 kg
• Compact Design: Optimized for space-efficient installation in control cabinets
• DIN Rail Compatible: Standard mounting options for easy integration

Core Applications

Power Generation & Excitation Systems

The UFC921A101 serves as a critical component in ABB UNITROL 5000 excitation systems, providing precise control over generator excitation current. Key applications include:

• Thermal Power Plants: Voltage and reactive power regulation for large synchronous generators
• Hydroelectric Facilities: Excitation control for hydroelectric generators
• Nuclear Power Stations: High-reliability excitation system control
• Grid Stability: Dynamic reactive power support during grid disturbances

The module manages excitation current by controlling the Silicon Controlled Rectifier (SCR) bridge, ensuring stable operation of synchronous generators and rapid response to grid changes. Its dual-channel AVR system with manual emergency backup represents the highest configuration level in the UNITROL 5000 series.

Industrial Automation & Process Control

In ABB Advant Master control systems, UFC921A101 functions as an interface board, connecting controllers with various field devices on the Masterbus 300 network:

• Analog/Digital I/O Processing: Seamless integration with sensors and actuators
• Temperature Monitoring: Real-time temperature data acquisition and control
• Motor Control: Integration with motor controllers for precise speed and torque regulation
• Process Monitoring: Continuous monitoring of industrial process parameters

Frequency Converter Applications

As an INT-2 board in ABB ACS frequency converters, UFC921A101 provides essential power and motor control functions:

• Pump Control: Variable speed control for industrial pumps, optimizing energy efficiency
• Fan Applications: Precise fan speed regulation for HVAC and industrial ventilation
• Compressor Systems: Efficient control of air and gas compressors
• Conveyor Systems: Speed and torque control for material handling equipment

The board supports multiple communication protocols, enabling seamless integration with external control systems such as PLCs and DCS architectures.

Technical Advantages & Innovation

1. Highly Integrated Multifunctionality

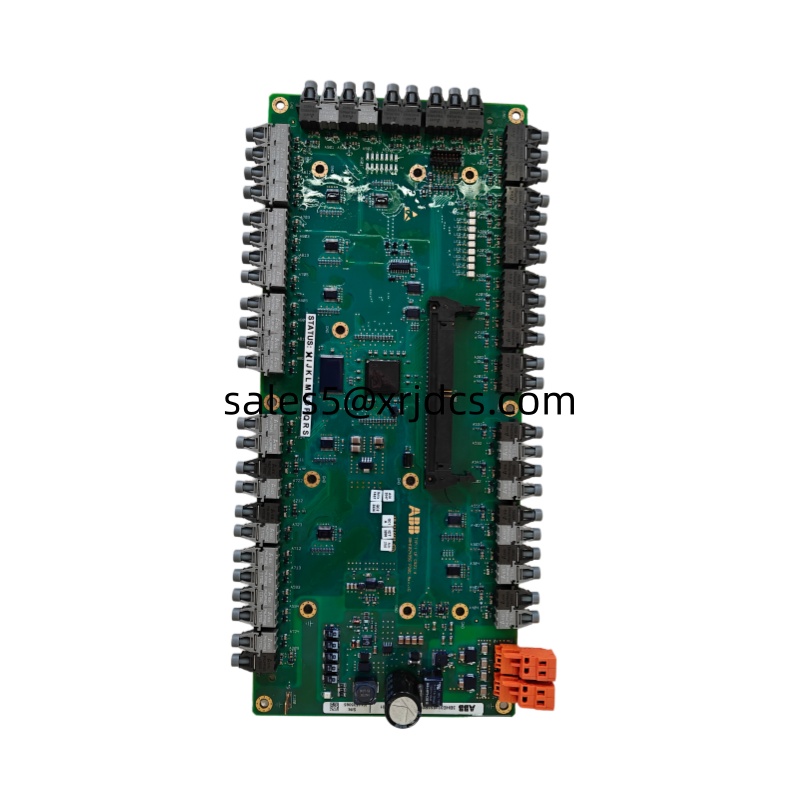

The UFC921A101 combines multiple critical functions into a single module, reducing system complexity and cost:

• Integrated Automatic Voltage Regulation (AVR) functionality
• Silicon Controlled Rectifier (SCR) control capabilities
• Communication interface for system networking
• Power management and distribution functions

This integrated design eliminates the need for multiple independent components, simplifying system architecture while maintaining high performance and reliability.

2. Exceptional Control Precision

The module delivers superior control accuracy across various applications:

• Generator Voltage Regulation: Precise control with millisecond response times
• Reactive Power Management: Dynamic adjustment for optimal power factor
• Motor Speed Control: ±0.1% accuracy in speed regulation (without encoder)
• Torque Control: Direct Torque Control (DTC) for optimal motor performance

3. Robust Communication Capabilities

Support for multiple mainstream industrial communication protocols ensures seamless system integration:

• Masterbus 300: ABB's proprietary high-speed protocol
• Modbus: Industry-standard serial communication
• Profibus DP: Widely adopted fieldbus protocol
• CANopen: Real-time distributed control protocol

This extensive compatibility enables easy integration into existing or new ABB control architectures, facilitating system upgrades and expansions.

4. Industrial-Grade Reliability

Designed for demanding industrial environments, UFC921A101 incorporates multiple reliability features:

• Wide Temperature Operating Range: Suitable for extreme environmental conditions
• Moisture and Pollution Protection: Varnished coating for enhanced durability
• Hot Swappable Design: Reduces maintenance downtime
• Redundant Systems: Dual-channel AVR for excitation applications
• Quality Assurance: Backed by ABB's century-long expertise in industrial automation

Installation & Integration

Installation Requirements

• Mounting: DIN rail compatible or control cabinet installation
• Protection: Requires IP21 or higher cabinet protection
• Ventilation: Ensure adequate airflow for heat dissipation
• Power Supply: 24V DC (supplied via main controller or external source)
• Wiring: Shielded cables recommended for signal integrity

System Integration

The UFC921A101 integrates seamlessly with various ABB systems:

• UNITROL 5000 Excitation Systems: Core excitation control component
• ACS Frequency Converters: INT-2 board for power and motor control
• Advant Master Systems: Interface board for Masterbus 300 networking
• DCS Architectures: Compatible with various distributed control systems

Programming & Configuration

• Control Builder M: ABB's established programming tool for configuration
• DriveWindow: Dedicated software for frequency converter applications
• IEC 61131-3 Compliant: Supports standard programming languages
• Automated Code Generation: Model-based development for faster implementation

Performance Benefits & ROI

Energy Efficiency

• Variable Speed Control: Optimize motor speed based on actual demand
• Power Factor Improvement: Reactive power compensation for grid efficiency
• Soft Start Capabilities: Reduce inrush currents and mechanical stress
• Energy Savings: Up to 35% energy reduction in pump and fan applications

Reliability & Uptime

• Redundant Systems: Dual-channel configuration for critical applications
• Hot Swappable Design: Maintenance without system shutdown
• Robust Construction: Withstands harsh industrial environments
• Fast Response: Millisecond-level response to system changes

Operational Excellence

• Precision Control: High accuracy in voltage, speed, and torque regulation
• Real-Time Monitoring: Continuous system performance monitoring
• Seamless Integration: Compatible with multiple ABB and third-party systems
• Reduced Complexity: Integrated functionality reduces component count

Product Condition & Availability

• Condition: Brand New / Original Factory Sealed
• Availability: In Stock, Ready for Immediate Shipment
• Warranty: 12 Months Manufacturer Warranty
• Minimum Order: 1 Piece
• Delivery Time: 3-5 days after payment confirmation
• Origin: Sweden / USA
• Certification: CO (Certificate of Origin), CQ (Certificate of Quality)

Why Choose ABB UFC921A101 3BHE024855R0101?

1. Proven Reliability: Backed by ABB's century-long expertise in industrial automation
2. Versatile Applications: Suitable for excitation systems, frequency converters, and process control
3. Advanced Technology: Incorporates cutting-edge control algorithms and communication protocols
4. Industrial-Grade Design: Engineered for harsh environments and continuous operation
5. Seamless Integration: Compatible with comprehensive ABB automation portfolio
6. Global Support: Supported by ABB's worldwide service network

Contact Us for Expert Assistance!

For pricing, technical specifications, or procurement inquiries regarding the ABB UFC921A101 3BHE024855R0101 INT-2 Board, our experienced team is ready to assist you. We specialize in providing genuine ABB industrial automation products with guaranteed quality and reliable global shipping.

Contact Information:

• Telephone: +8618250705533
• WhatsApp: +8618250705533
• Email: sales5@xrjdcs.com
• Website: www.xrj-plc.com

Why Purchase From Us?

• 100% Original Products – All items are brand new with original factory seal
• Extensive Inventory – Large stock of ABB and industrial control products
• Fast Global Delivery – Express shipping via DHL, UPS, EMS, FedEx
• Quality Assurance – All products undergo rigorous testing before shipment
• Professional Packaging – Anti-static and protective packaging for safe transportation
• Flexible Payment Options – T/T, PayPal, Western Union accepted
• Expert Technical Support – Knowledgeable sales team for all your inquiries
• Competitive Pricing – Best value for genuine ABB products
• Warranty Coverage – 12-month warranty on all products
• Dedicated Customer Service – Responsive support before and after sale

Invest in the ABB UFC921A101 3BHE024855R0101 INT-2 Board today and experience unmatched performance, reliability, and efficiency in your industrial automation and power control systems!
