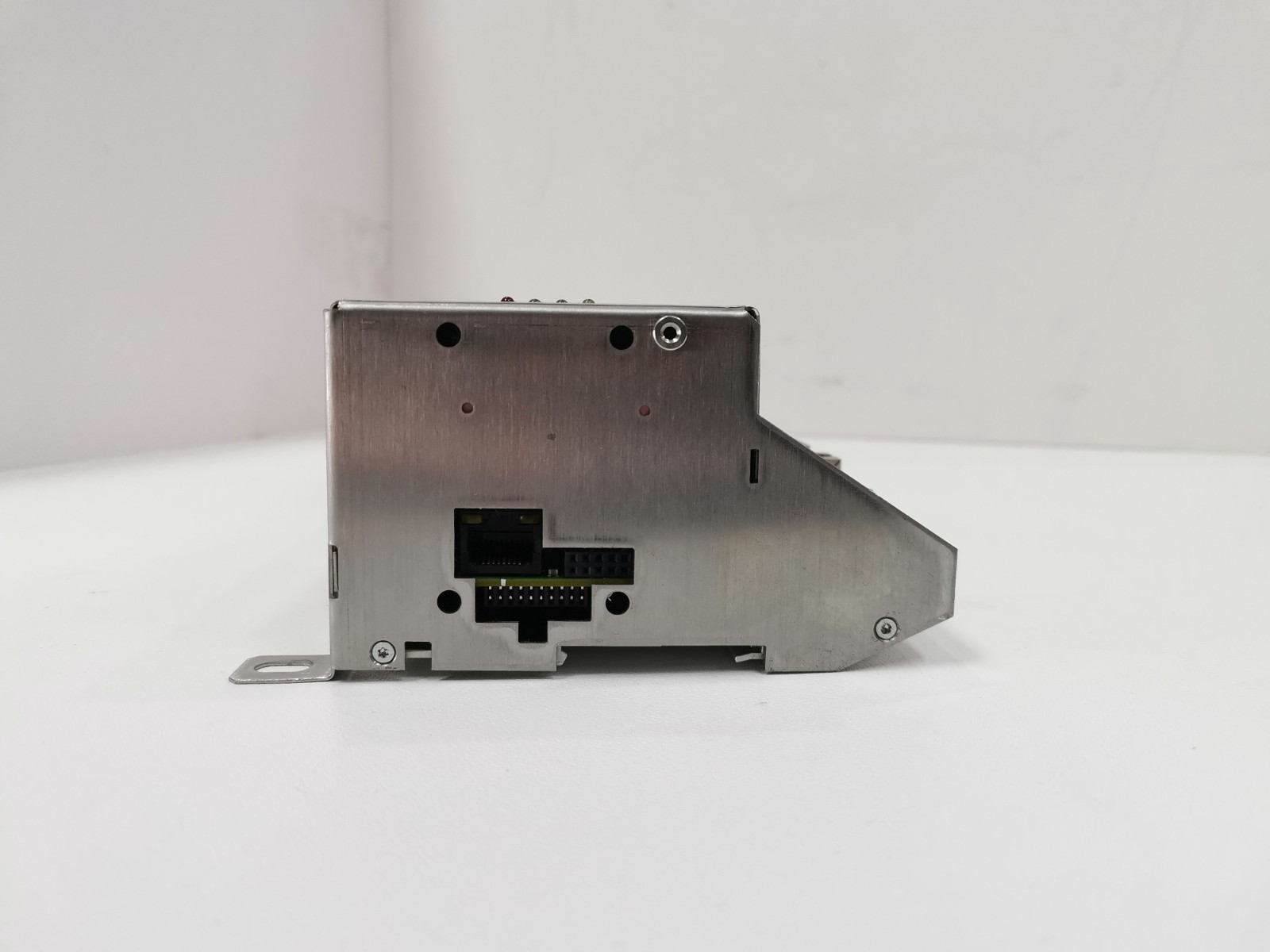

ABB PDD200A101 (3BHE019633R0101) Power Distribution & Pulse Drive Module | Core Industrial Control System Component, Original ABB In Stock

Product Overview

ABB PDD200A101, material number 3BHE019633R0101, is a high-performance integrated pulse distribution power driver module, widely defined as a power distribution core component for ABB UNITROL generator excitation systems and medium voltage industrial drive control systems. It undertakes two core tasks in industrial control cabinets:

1. Stable AC-DC power conversion & multi-channel power distribution for excitation control boards, signal sampling boards and gate drive units;
2. High-precision pulse signal distribution, converting main controller fiber commands into synchronous firing pulses for power semiconductor stacks (IGCT/IGBT). It integrates power regulation, short-circuit protection, pulse isolation and fault signal feedback circuits, serving as the indispensable power supply and signal distribution hub of heavy-duty power control systems. We supply 100% brand-new sealed genuine ABB modules with abundant spot inventory, fast global delivery and standard 12-month manufacturer warranty, widely applied for power plant excitation cabinet assembly, medium voltage drive system renovation and emergency spare replacement.

Module Circuit Board

Core Technical Specifications

表格

Parameter Item	Standard Specification
Full Part Code	PDD200A101 / 3BHE019633R0101
Matching Industrial Control Platform	ABB UNITROL Generator Excitation System, PCS6000 Medium Voltage Drives
Input AC Voltage	380~500V three-phase industrial grid input
DC Output Parameter	560V stable DC output, continuous rated current 200A, peak 300A, total output power 112kW
Pulse Distribution Function	Multi-channel synchronous firing pulse output, optical fiber isolation signal transmission
Built-in Power Protection	Overcurrent, short-circuit, overvoltage, undervoltage, overheat lockout protection
Communication Interface	Internal high-speed bus + fiber fault feedback channel
Processor	32-bit high-speed RISC dedicated power control processor
Operating Temperature	-10℃ ~ +40℃ cabinet working range
Storage Temperature	-40℃ ~ +85℃
Protection Grade	IP20 (indoor control cabinet installation)
PCB Treatment	Full conformal coated anti-corrosion reinforced circuit board
Dimensions & Weight	310×250×140mm, total weight approx. 10kg
Certifications	CE, UL, IEC 61800 power electronic EMC safety standard

Core Advantages as Industrial Control Power Distribution Component

1. Integrated Power Distribution + Pulse Drive Dual Function Simplifies Cabinet Layout

Single module integrates industrial power distribution and pulse signal distribution functions simultaneously. It uniformly supplies stable DC power to all sub-control boards inside excitation/medium voltage drive cabinets, and synchronously distributes trigger pulses to power semiconductors. It replaces discrete independent power supply boards and pulse distribution boards, greatly reducing cabinet internal wiring complexity, saving installation space and lowering overall hardware procurement cost for industrial control projects.

2. Ultra-Stable High-Current Power Output Ensures Continuous Unit Operation

Adopts ABB proprietary high-efficiency rectifier & voltage regulation topology, output DC voltage ripple extremely low, strong anti-grid fluctuation capability. 200A continuous high-current output meets full-load power demand of large generator excitation and heavy-duty medium voltage drive power units, supporting 24/7 unattended long-term full-load operation of power generation and metallurgical equipment without voltage collapse or power supply instability.

3. Full Optical Isolation Architecture Eliminates High-Voltage Interference

All pulse control signals adopt fiber optic differential isolation transmission, thoroughly separate low-voltage control circuit and high-power power loop. It effectively suppresses electromagnetic radiation, harmonic surge and ground potential difference interference generated by high-current switching of IGCT/IGBT power modules, avoiding pulse distortion, misfiring and control system trip caused by industrial field noise.

4. Multi-Layer Hardware Protection Prevents Secondary Equipment Damage

Built-in multi-stage fast hardware protection logic: microsecond-level short-circuit overcurrent lockout, power loop overvoltage/undervoltage interlock, module overheat shutdown protection. Once power distribution circuit or pulse drive loop fails, the module instantly cuts power output and blocks all trigger pulses, while uploading fault codes to the main controller via fiber, effectively protecting expensive power semiconductors and main control boards from burnout.

5. Real-Time Self-Diagnosis & Visual Fault Indication for Fast Maintenance

Onboard independent multi-group LED status indicators separately display power input, DC output normal, pulse synchronization and fault alarm status. Built-in full self-test function automatically judges power supply abnormality, fiber disconnection, pulse channel failure and over-temperature faults, maintenance staff can quickly locate power distribution system faults without extra testing instruments, drastically shortening production line and power plant equipment downtime.

6. Industrial-Grade Sealed Hardware Adapts to Harsh Heavy-Duty Environments

All internal power transformers, rectifier chips and drive components are ABB power-grade original devices. The circuit board adopts dust-proof, moisture-proof conformal coating process, each finished module passes strict factory full-load aging, vibration resistance and damp-heat cycle testing before delivery. It stably runs in dusty generator rooms, humid hydropower control rooms and high-temperature metallurgical converter workshops, with ultra-low long-term failure rate and superior MTBF performance compared with generic imitation power distribution boards.

Main Industrial Control System Application Scenarios

1. Thermal & Hydropower Plant Generator Excitation Control Systems: Core power distribution and pulse drive component of UNITROL excitation cabinets, realizing generator terminal voltage closed-loop regulation
2. Metallurgy Heavy-Duty Medium Voltage Drive Control Systems: PCS6000 rolling mill main drive, continuous casting equipment power cabinet power supply and pulse distribution unit
3. Mining Large Equipment Variable Frequency Control: Long-distance heavy conveyor medium voltage drive power distribution core module
4. Cement & Petrochemical Process Industrial Control: Rotary kiln main drive, large centrifugal compressor medium voltage converter power supply unit
5. New Energy Grid-Connected Power Control Equipment: Wind turbine full-power converter internal power distribution and pulse drive component

Original In-Stock Supply & Global Fast Shipping Service

All ABB PDD200A101 industrial control power distribution modules we provide are 100% genuine original factory products, complete with sealed original packaging and official factory full-performance test reports, covered by a formal 12-month warranty against manufacturing defects under rated standard operating conditions. Our warehouse maintains abundant permanent ready stock to rapidly fulfill urgent power plant and heavy industrial drive equipment maintenance orders and bulk procurement for global industrial EPC projects. We adopt professional anti-static, shockproof and moisture-proof dedicated export packaging to protect precision power circuit boards during long-distance sea and air international transportation. We cooperate with mainstream global logistics carriers to deliver fast worldwide shipment covering Europe, North America, Southeast Asia, the Middle East and all major power & heavy industrial regions, with one-stop professional customs clearance coordination support. Our full supporting service includes pre-sales UNITROL/PCS6000 industrial control system compatibility verification, power distribution scheme consultation, plus after-sales technical guidance including cabinet installation wiring, fiber pulse signal debugging and complete excitation/medium voltage drive system overall commissioning.
Selecting genuine original ABB PDD200A101 power distribution module delivers stable high-current power supply and synchronous pulse distribution guarantee for your heavy-duty industrial control and power generation systems. Consistent original ABB power electronic quality eliminates hidden power supply collapse and power module burnout risks brought by counterfeit spare parts, effectively reducing unplanned power unit trip frequency and long-term operation maintenance costs. Supported by our ample in-stock inventory, efficient fast worldwide shipping and complete 12-month warranty protection, it is the trusted original power distribution spare component choice for global power generation and medium voltage drive industrial control projects.
