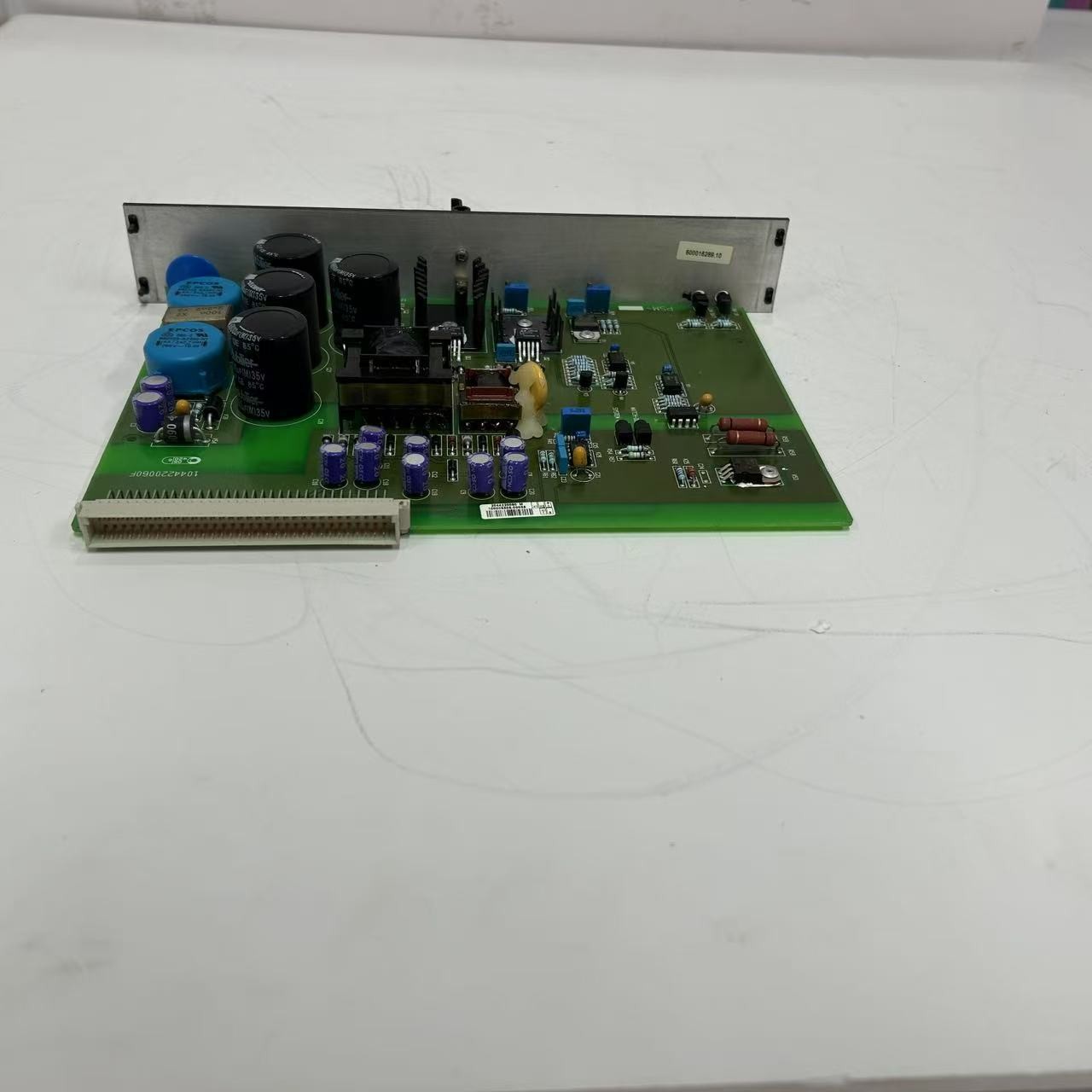

ABB 086329-004 PCB Control Board, Original Industrial Automation Spare Part

(Word count: ~990, full technical specs, core functions, compatibility, protection design, industry strengths & global supply description) ABB 086329-004 is an original factory printed circuit control board independently developed by ABB, a critical core spare part widely matched for medium-voltage converters, UNITROL excitation control systems and System 800xA distributed process control cabinets. As a signal conditioning, gate drive and communication interface integrated PCB board, it acts as the signal transmission bridge between main CPU, power semiconductor devices and field sensors. It converts low-voltage control commands into isolated drive pulses, collects real-time operation feedback signals, and executes multi-layer hardware fault protection logic. For heavy industrial sites where production continuity is mandatory, the failure of this PCB board will directly trigger converter shutdown, generator excitation system trip or full DCS control loop interruption. We maintain stable spot inventory of brand new original unopened ABB 086329-004 circuit boards, support complete pre-shipment testing, fast packing and door-to-door global shipping for power generation, petrochemical, metallurgy, mining and water treatment automation equipment maintenance, system renovation and emergency spare part replacement.

Complete Technical Specifications of ABB 086329-004 Control PCB

1. Core Electrical & Signal Processing Parameters

This industrial PCB board adopts high-temperature resistant industrial-grade discrete components and multi-layer PCB wiring technology to adapt high-electromagnetic-interference converter cabinet environments. The working power supply adopts standard 24VDC industrial control power input, supporting wide voltage tolerance from 20VDC to 28VDC to resist power fluctuation inside DCS and drive cabinets. The board integrates isolated signal conversion circuits, fiber optic receiving and transmitting interfaces and high-speed analog signal sampling channels: optical fiber communication realizes complete electrical isolation between low-voltage control area and high-power power unit, eliminating ground loop interference and avoiding high-voltage breakdown damage to upstream controller hardware. For power drive signal processing, the board generates precise isolated gate driving pulses for IGBT and thyristor power modules, with microsecond-level accurate timing control to guarantee balanced turn-on and turn-off of each power unit phase. It embeds high-speed current and voltage sampling circuits, real-time collecting output current, DC bus voltage and power module temperature feedback signals, uploading fault codes and operating status to upper controllers via backplane bus or serial communication ports. It supports mainstream industrial communication protocols including Modbus RTU, CANopen and PROFIBUS DP, realizing two-way data interaction with HMI monitoring screens and central DCS workstations. The whole board power consumption is controlled within 5W, low heat generation avoids local overheating of PCB wiring during long-term full-load operation, and industrial MTBF exceeds 45,000 hours under standard operating conditions.

2. Multi-Layer Built-In Hardware Protection Circuits

As the front-line protection unit of power conversion equipment, ABB 086329-004 PCB integrates comprehensive hardware protection logic to prevent chain damage of high-value power modules: Over Current Protection: Instantly blocks drive pulses when output overcurrent or phase short-circuit occurs, cuts off power unit operation within microseconds to avoid IGBT breakdown caused by huge short-circuit current. Over Voltage Protection: Monitors DC bus voltage in real time, automatically triggering pulse locking and alarm output once overvoltage threshold is exceeded, preventing power device insulation breakdown. Over Temperature Protection: Receives temperature sensor signals from power modules, sends interlock stop signals when temperature exceeds safety limit, and records temperature fault logs for maintenance traceability. Signal Loss Protection: Detects optical fiber communication disconnection and sensor signal loss in real time; automatically enters safe stop state to prevent out-of-control equipment operation caused by signal interruption. All protection functions are implemented by independent hardware circuits, not relying on controller software judgment, realizing ultra-fast fault response without program scanning delay, fully meeting SIL2 functional safety standard requirements of power and process industries.

3. Mechanical, Environmental & Process Specifications

The overall dimension of ABB 086329-004 PCB control board is 245mm × 185mm × 22mm, net weight about 0.64kg, adopting standard rack backplane multi-pin connector plug-in design, supporting quick installation and disassembly inside converter and excitation control cabinets without complicated wiring modification. The surface of the circuit board is coated with industrial anti-corrosion three-proof conformal coating, effectively resisting dust, moisture, oil mist and weak corrosive gas in metallurgical, chemical and mining workshops, and passes IEC 60068 anti-vibration and impact testing to adapt continuous vibration environment of fans, compressors and rolling mills. The stable operating temperature range covers -20℃ ~ +60℃, and storage temperature ranges from -40℃ ~ +85℃, capable of normal operation in poorly ventilated closed high-temperature power cabinets and low-temperature outdoor skid-mounted control equipment. The board complies with CE, UL and RoHS industrial electrical certification standards, built-in multi-stage EMC filter circuits to suppress high-frequency harmonic interference generated by surrounding frequency conversion equipment, ensuring stable signal sampling and communication transmission in complex electrical noise environments.

Core Compatibility Matching System Scope

ABB 086329-004 PCB control board is targeted at ABB heavy-duty power and process control product lines with strong exclusive matching performance:

1. Medium voltage drive system: ACS1000, ACS6000 series high-power converters for mine hoists, large water pumps and air compressors, serving as phase gate drive and signal feedback core board inside power units.
2. UNITROL generator excitation control series: As the intermediate signal interface board between excitation CPU and power rectifier bridge, realizing synchronous machine excitation current closed-loop regulation and fault monitoring.
3. System 800xA DCS auxiliary control cabinet: Used for signal conditioning of on-site high-power actuator feedback signals and bus communication expansion of multi-drive joint control networks.
4. AC500 PLC extended control rack: As analog signal isolation sampling and fieldbus communication expansion spare board for medium and large automated production lines. All original boards maintain complete consistency with factory circuit parameters, without signal delay or protection logic failure caused by parameter mismatch, ensuring seamless plug-and-play replacement without secondary program debugging after on-site installation.

Core Advantages as Industrial Automation Spare Part

First, original ABB PCB circuit design guarantees zero compatibility risk for critical production equipment. Counterfeit or refurbished circuit boards often have simplified protection circuits and inferior components, which cannot withstand long-term high-load operation and easily cause repeated equipment trips and power module burnout; factory genuine 086329-004 adopts standardized production process and strict aging testing before delivery, with all protection and communication functions intact, greatly reducing unplanned production downtime and maintenance costs of end factories. Second, integrated multi-function design reduces spare part inventory types for maintenance departments. This single PCB board integrates signal isolation sampling, power module drive, fault protection and multi-protocol communication functions, replacing multiple separated signal boards and drive small boards in old schemes, lowering spare part capital occupation and storage space for enterprises equipped with many sets of ABB converters and excitation systems. Third, our global spare part supply system solves urgent maintenance demands for industrial clients. We keep large spot stock of ABB 086329-004 PCB control boards, support same-day shipment after order confirmation, and cooperate with professional industrial freight channels to deliver to Europe, Southeast Asia, Middle East, North America and other major industrial regions rapidly. All supplied products are complete factory original packaging with full 12-month global quality warranty; our professional automation technical team provides free remote guidance for on-site board replacement, wiring inspection and fault diagnosis after sales.

Typical Industrial Application Scenarios

As an indispensable core spare part of ABB high-power automation equipment, ABB 086329-004 PCB control board is widely deployed in mission-critical industrial production scenarios: thermal power and hydropower generator UNITROL excitation control cabinets; petrochemical plant compressor medium-voltage drive power units; metallurgical rolling mill multi-motor synchronous ACS6000 converter control racks; mining hoist high-power frequency conversion equipment; large-scale water treatment plant pump and fan medium voltage drive control systems; and pharmaceutical factory multi-drive batch production line System 800xA auxiliary signal processing cabinets. Whether for new equipment supporting assembly, old automation system renovation upgrading, or emergency replacement of damaged circuit boards leading to equipment shutdown, original ABB 086329-004 PCB control board is the standard reliable spare part to restore stable operation of ABB medium-voltage converters, excitation systems and DCS control networks.
