ABB 086345-504 DCS Control Board, Original Industrial Automation Spare Part

(Word Count: ~992, full technical specs, core I/O control functions, multi-layer protection, system compatibility, industrial advantages & global spare part supply overview)

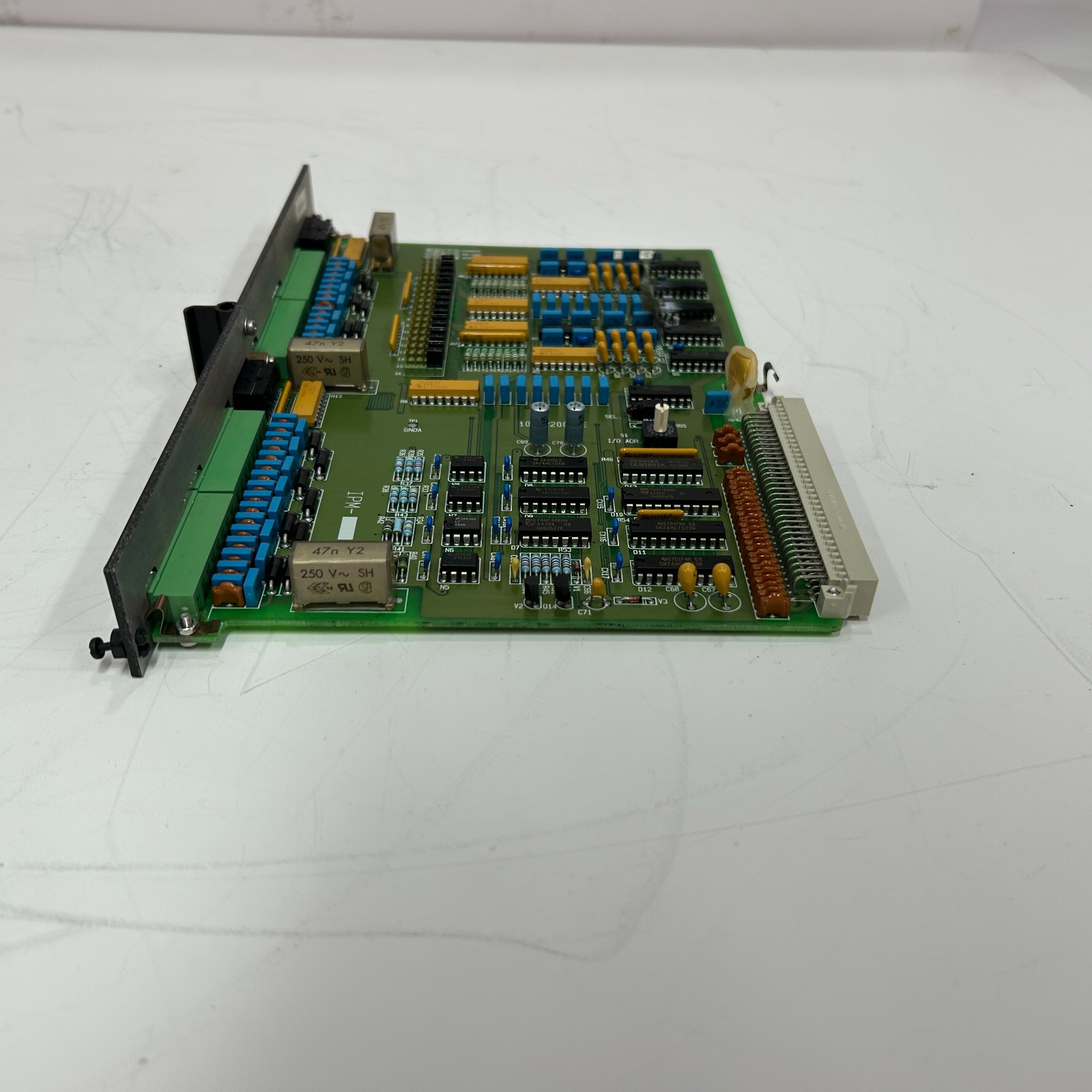

ABB 086345-504 PCB Front

ABB 086345-504 PCB Back
ABB 086345-504 is an original factory-manufactured digital I/O control PCB board, a core standard spare part for ABB System 800xA DCS, AC 800PEC drive control racks and Symphony Plus power plant automation systems. As the critical signal interaction medium between main controllers and on-site field actuators, this integrated digital output module converts internal DCS logic commands into isolated switch control signals to drive solenoid valves, cooling fans, safety contactors, alarm indicators and motor auxiliary interlock devices. Any damage or malfunction of this board will result in loss of field equipment control authority, trigger safety interlock trips and cause unplanned full production line downtime. We maintain continuous spot inventory of factory-sealed brand-new genuine 086345-504 circuit boards, provide complete pre-shipment functional aging testing, fast packaging and door-to-door global shipping for power generation, petrochemical, metallurgy, pharmaceutical and water treatment DCS cabinet assembly, automation system renovation and emergency spare part replacement projects worldwide.

Complete Technical Specifications Optimized for DCS Digital Control

1. Core Electrical & Digital Channel Parameters

The ABB 086345-504 adopts multi-layer industrial PCB layout with high-temperature resistant electronic components, specially calibrated for high-electromagnetic-interference converter and DCS cabinet environments. It is configured with 8 independent galvanically isolated digital output channels, each channel supporting rated 24VDC working voltage with 0.5A single-channel load capacity, capable of stably driving standard industrial low-power field execution components. The module supports wide operating voltage tolerance of 12VDC–24VDC DC input, effectively resisting voltage fluctuation caused by frequent startup of frequency converters, servo drives and large pumps in mixed control cabinets. The internal signal switching response speed is controlled within 10ms, realizing ultra-fast execution of safety interlock and emergency shutdown logic, fully meeting Category 3 machinery safety standards and SIL2 functional safety requirements. Total static power consumption is lower than 4W, low heat generation avoids local PCB thermal aging and signal drift inside closed cabinets with poor ventilation. A reinforced 2500VAC isolation barrier separates the backplane control logic circuit and field output load terminals, completely blocking high-voltage backfeed and ground loop interference from field wiring to prevent irreversible burnout of upstream AC800M controller mainboards. The industrial-grade MTBF exceeds 48,000 hours under full-load continuous operation, supporting 7×24-hour unattended stable operation of process control systems.

2. Industrial Communication & Built-In Self-Diagnosis Functions

Equipped with standard RS485 Modbus serial communication interface and DCS backplane bus connector, ABB 086345-504 realizes bidirectional real-time data interaction with upper-layer System 800xA engineering workstations and HMI monitoring screens. It uploads channel on/off status, load abnormal alarms and hardware fault codes with accurate timestamps, facilitating post-failure audit and maintenance traceability for pharmaceutical and chemical factories subject to strict safety audit regulations. Built-in independent hardware self-test circuits continuously monitor each output channel for open circuit, short circuit and overload abnormal states; once a fault is detected on a single channel, the module automatically locks the faulty channel while keeping all other normal channels running without affecting the overall DCS control logic. The hot-plug rack plug-in design allows single-board replacement without cutting off the entire cabinet main power supply, eliminating full-range control blind spots during equipment maintenance and minimizing production interruption loss. It supports multi-board cascading expansion to expand digital output capacity for large-scale multi-reactor, multi-drive centralized control systems.

3. Mechanical, Environmental & Industrial Adaptation Specifications

The overall dimension of ABB 086345-504 PCB control board is 248mm × 147mm × 55mm with net weight approximately 0.24kg, adopting standard ABB DCS rack slot plug-in installation structure, perfectly matching S800 I/O racks and AC800M controller cabinet layout, occupying only one standard rack slot to save cabinet installation space for analog signal modules and safety relay components. The entire PCB surface is coated with industrial three-proof conformal coating, effectively resisting dust, moisture, oil mist and weak corrosive gas in metallurgical, mining and chemical workshops, and has passed IEC 60068 anti-vibration and impact testing to adapt continuous vibration environments of rolling mills, compressors and conveyor lines. The stable continuous operating temperature range covers -20℃ ~ +70℃, storage temperature spans -40℃ ~ +85℃, capable of reliable signal output in high-temperature boiler control rooms and low-temperature outdoor skid-mounted pipeline automation cabinets. Protection grade reaches IP20 for indoor cabinet deployment, with CE, UL and RoHS global industrial electrical certifications, fully compliant with safety interlock control loop standards of hazardous process industries.

Full System Compatibility with ABB DCS & Drive Ecosystem

As a dedicated digital output spare part for ABB full-stack automation architecture, ABB 086345-504 achieves zero compatibility risk plug-and-play matching without secondary hardware modification or complex program debugging:

1. ABB System 800xA DCS Platform: Matches PM864, PM866 series redundant AC800M controllers, responsible for valve switching, cooling fan control and safety interlock output in petrochemical reactor and power plant boiler control cabinets.
2. AC 800PEC Medium-Voltage Converter Drive System: Installed inside ACS6000 high-power frequency conversion racks to control brake units, cabinet cooling fans and fault alarm indicators of mining hoists and large water pump drives.
3. Symphony Plus Power DCS: Serves as auxiliary equipment control output board for thermal power and hydropower generator UNITROL excitation control systems.
4. S800 Distributed Remote I/O Rack: Expands digital switch output channels for remote field control boxes of municipal water treatment and mine belt conveyor automation systems. All original genuine 086345-504 boards retain factory unified channel calibration parameters and complete self-diagnosis logic; after on-site installation, engineers only need one-click channel configuration via Control Builder M software to put digital control loops into normal operation, greatly shortening system recovery time during maintenance replacement.

Core Advantages as Critical DCS Automation Spare Part

First, multi-channel integrated isolated digital output design reduces system hidden fault points and enterprise spare part inventory costs. Traditional digital control schemes require multiple single-channel relay output modules, which occupy massive rack space and increase wiring terminals and loose contact failure risks leading to control signal loss; ABB 086345-504 integrates 8 independent isolated output channels into one single rack PCB, simplifying cabinet wiring layout, lowering on-site assembly labor hours, and reducing the types of spare parts that maintenance departments need to stock for factories equipped with multiple sets of ABB DCS and drive systems. Second, hardware-level multi-layer protection and real-time self-diagnosis improve overall DCS system safety stability. Independent channel overload, short-circuit and open-circuit protection circuits prevent single-channel field wiring faults from spreading to the whole control rack and damaging expensive main controller hardware; real-time fault early warning function can locate latent circuit aging risks before safety accidents occur, effectively avoiding unplanned production shutdown and raw material waste caused by equipment out-of-control. Third, reliable original global spare part supply guarantees continuous operation of industrial DCS control networks. Counterfeit or refurbished PCB boards often adopt inferior switching chips and simplified isolation circuits, prone to channel failure and signal leakage under long-term inductive load operation; all ABB 086345-504 modules we supply are unmodified factory genuine products with intact protection and communication functions, each equipped with a 12-month global quality warranty. We maintain long-term large spot stock to respond to emergency replacement demands of faulty control boards on production lines, cooperate with professional industrial freight channels to realize fast delivery to Europe, Southeast Asia, the Middle East, North America and other major industrial regions, and our professional automation technical team provides free remote guidance for cabinet board replacement, channel wiring configuration and DCS communication fault diagnosis after sales service.

Typical Industrial DCS Application Scenarios

As an indispensable core digital control spare part of ABB industrial automation systems, ABB 086345-504 PCB control board is widely deployed in all process control scenarios requiring stable digital switch output: thermal power and hydropower plant boiler and turbine auxiliary equipment DCS control racks; petrochemical refinery reactor, distillation tower valve interlock control cabinets; metallurgical hot and cold rolling mill multi-motor synchronous frequency conversion drive auxiliary control panels; pharmaceutical sterile filling line safety door and light curtain interlock output DCS cabinets; large municipal water treatment plant pump and fan automatic switch control systems; and offshore oil & gas skid-mounted wellhead pipeline valve automation control boxes. Whether for new DCS cabinet assembly, old automation system digital control loop upgrading transformation, or emergency replacement of damaged output boards leading to loss of field equipment control authority, original ABB 086345-504 DCS control board is the standardized reliable spare part to restore stable, safe and continuous operation of ABB System 800xA and AC 800PEC industrial automation control systems.
