1. Product Overview

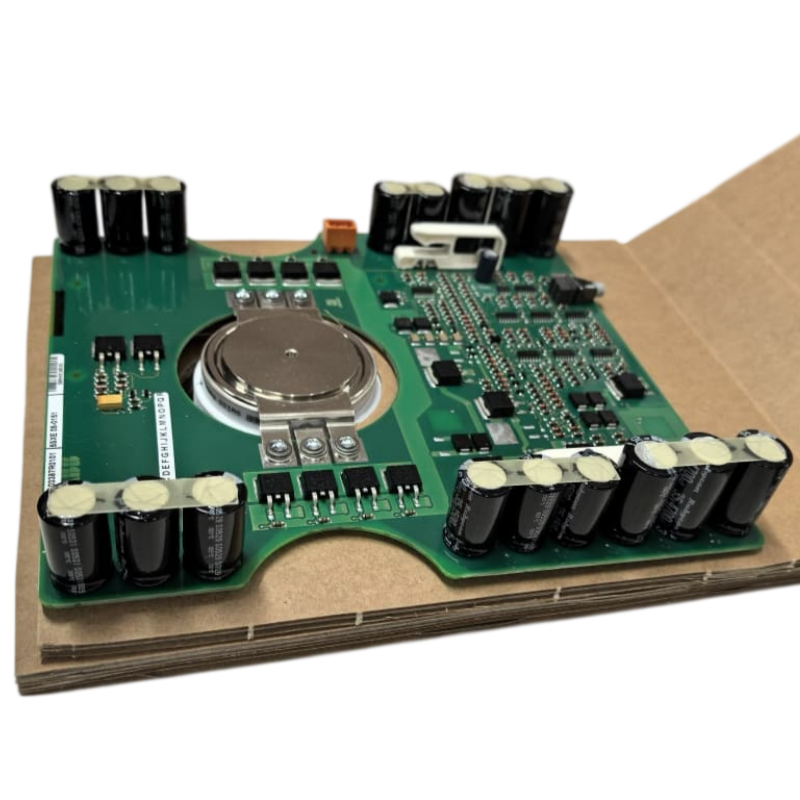

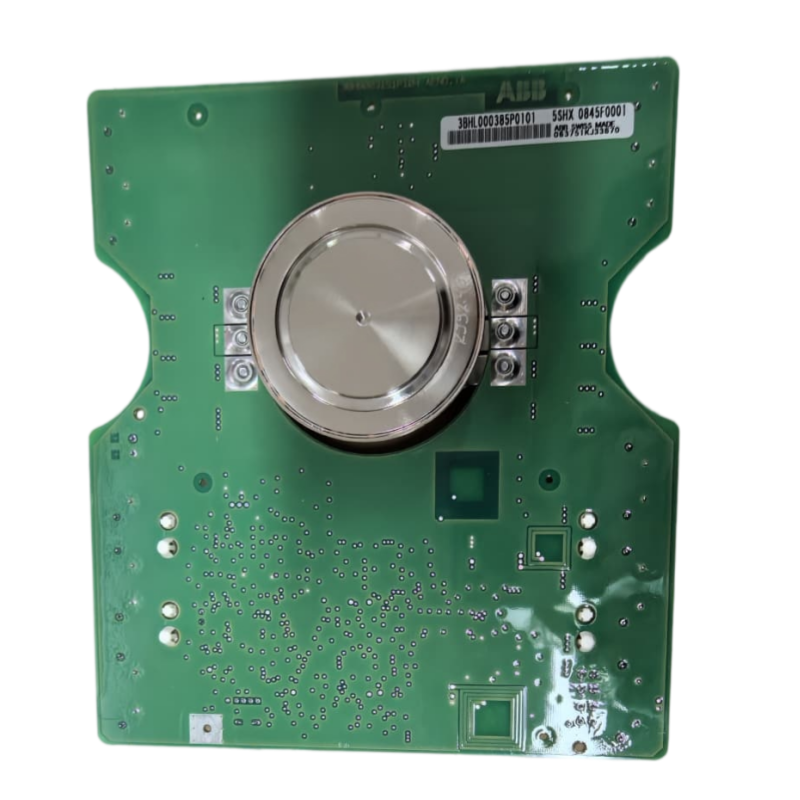

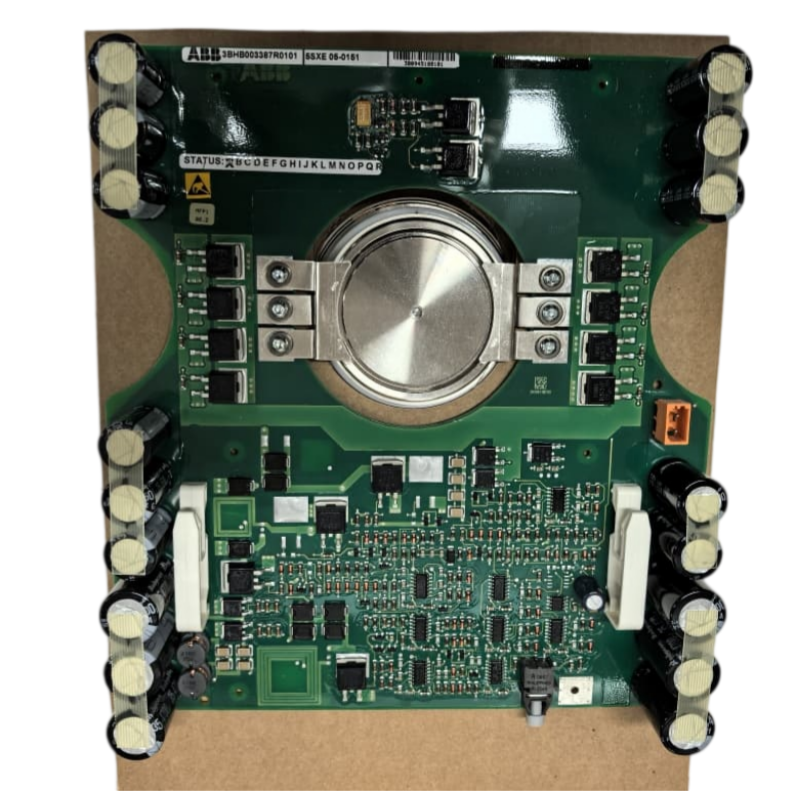

The ABB 5SHX0845F0001 is a high-performance silicon-controlled IGCT (Integrated Gate-Commutated Thyristor) module engineered for high-voltage and high-power industrial conversion systems. As a core component of ABB’s advanced power semiconductor series, the 5SHX0845F0001 module integrates gate drive circuitry and optimized silicon-controlled switching technology, delivering ultra-low conduction losses, excellent thermal stability, and superior short-circuit withstand capability for heavy-duty industrial applications.
Manufactured in Sweden, this original ABB IGCT module features compact packaging, high power density, and reliable switching performance. It is widely recognized for stable operation under extreme electrical and thermal loads, making it a preferred solution for grid power transmission, renewable energy conversion, and medium-voltage industrial drive systems.

2. Core Product Parameters

Model: 5SHX0845F0001
Part Number: 3BHL000385P0101
Module Type: Silicon Controlled IGCT Module
Brand: ABB
Origin: Sweden
Operating Frequency: Up to 60kHz
Peak Current: 25kA
RMS Current: 10kA
Switching Voltage: DC 1000V
Insulation Class: Class F
Withstand Short-circuit Time: 10μs
Isolation Strength: 4kV RMS (chip to base plate)
Cooling Method: Efficient thermal conduction cooling
Condition: Brand New & Original Sealed
Warranty: 1 Year

3. Key Features

• Advanced Silicon Controlled Technology: Adopts optimized silicon-controlled switching design, combining the advantages of traditional thyristors and IGBT devices, achieving faster switching response and lower power loss.
• High Power Density & Low Loss: Minimal on-state and switching losses reduce overall system energy consumption and cooling requirements, improving long-term operational efficiency.
• Strong Fault Tolerance: Built-in temperature thermistor and 10μs short-circuit withstand capability effectively protects the module and ensures stable operation under sudden load fluctuations.
• High Insulation & Safety Performance: Class F insulation and 4kV isolation strength provide reliable electrical safety for medium and high-voltage power conversion scenarios.
• Compact & Easy Integration: Standard industrial packaging with press-fit terminals simplifies system assembly, reduces cabinet space occupation, and supports series and parallel expansion.
• Long Service Life: ABB professional semiconductor manufacturing process ensures low FIT rate and excellent durability in continuous high-load operation.

4. Industrial Applications

The ABB 5SHX0845F0001 silicon-controlled IGCT module is specially designed for high-power and high-precision power conversion fields, widely applied in:

• HVDC (High Voltage Direct Current) power transmission systems
• Medium-voltage industrial motor drives and frequency conversion equipment
• Renewable energy power generation (wind power, solar power grid-connected inverters)
• Grid stabilization systems and STATCOM reactive power compensation devices
• Marine propulsion power systems and mining heavy-duty drive equipment
• Industrial high-power inverter and chopper systems

5. Product Advantages

Compared with ordinary power modules, the 5SHX0845F0001 silicon-controlled IGCT module delivers outstanding performance in high-frequency switching, high-current bearing, and thermal management. Its integrated gate drive structure eliminates the need for complex peripheral circuits, greatly improving system stability and reducing maintenance costs. As an original ABB industrial-grade semiconductor component, it fully complies with IEC industrial standards and is the ideal upgrade replacement for old-generation power control modules.

6. Shipping & Service

We supply100% original sealed ABB 5SHX0845F0001 modules with full quality inspection before delivery. All products enjoy one-year official warranty and support fast global shipping. Professional technical support is provided for model matching, parameter consultation, and after-sales problem solving to meet customers’ one-stop procurement demands for industrial power semiconductor modules.



---
