ABB 5SHX2645L0006 Reverse Conducting IGCT Module

Product Overview

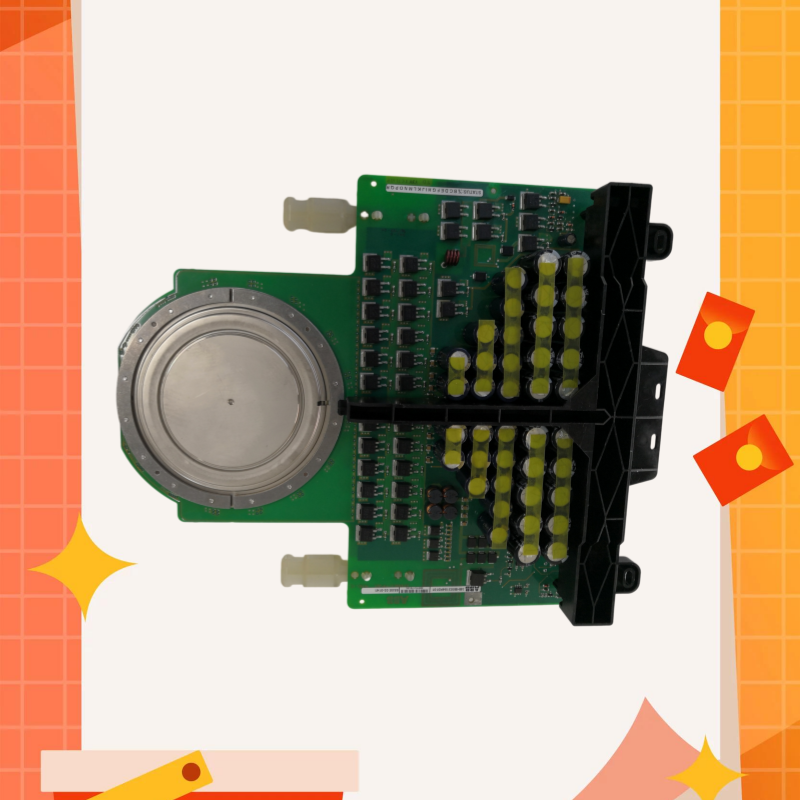

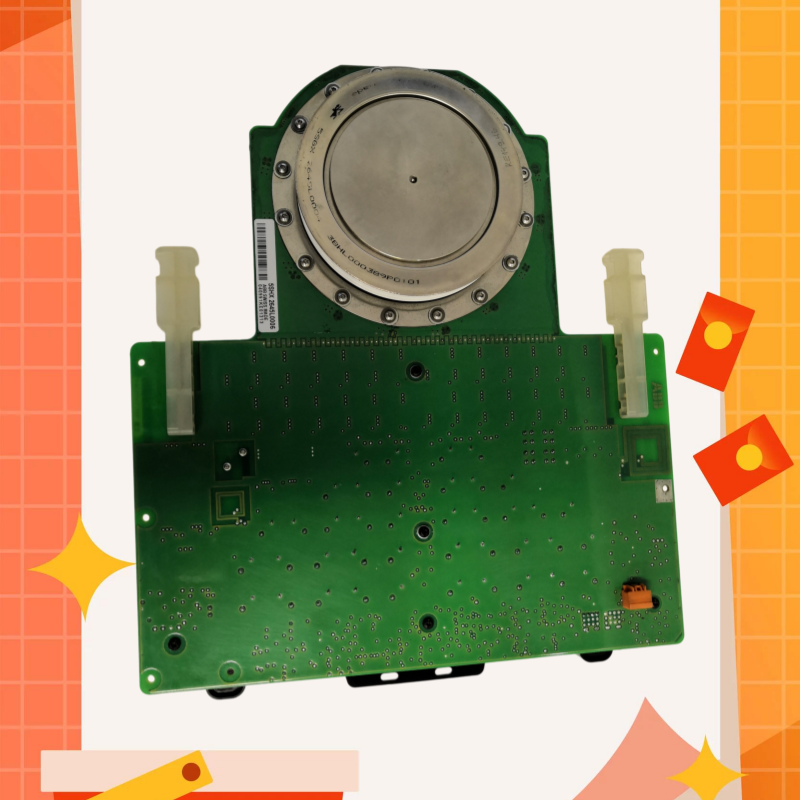

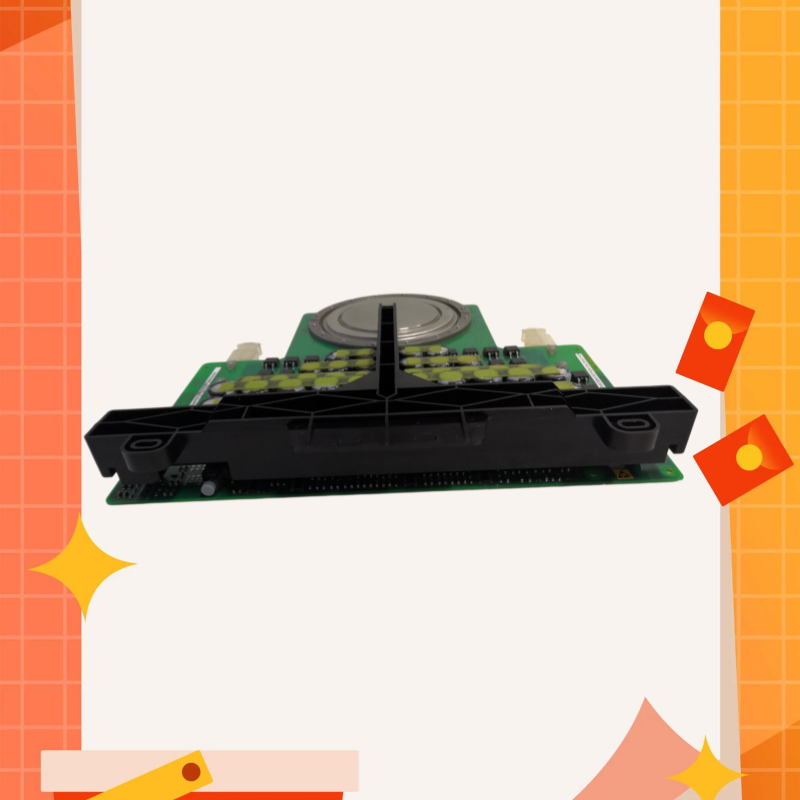

ABB 5SHX2645L0006 is a high-power reverse conducting IGCT (RC-IGCT) press-pack semiconductor device, also marked with assembly code 3BHB012961R0002. It integrates IGCT and freewheeling diode inside one single hockey-puck package, designed for high-efficiency medium voltage power conversion systems. This press-pack IGCT features low conduction loss and snubberless turn-off capability, widely adopted in ABB medium voltage drives, static var compensators, traction converters and renewable energy power cabinets. Every unit undergoes strict performance testing before shipment, suitable for equipment overhaul, emergency spare backup and field replacement of high-power converter systems.

Key Specifications

• Part Number: 5SHX2645L0006
• Assembly Code: 3BHB012961R0002
• Brand: ABB
• Product Type: Reverse Conducting IGCT (RC-IGCT)
• Package: Press-pack / Hockey puck
• Blocking Voltage VDRM: 4500 V
• Nominal Current ITGQM: 2200 A
• Peak Surge Current ITSM: 17 kA
• Mounting Force: 42~46 kN
• Junction Temperature: -40℃ ~ +125℃
• Cooling Method: Water cooling / High-pressure air cooling
• Condition: Original new / Fully tested refurbished available
• Application: Medium voltage converter, high-power energy conversion
• Suitable Industries: Metallurgy, mining, power plant, new energy, marine propulsion, railway traction

Features

1. Reverse conducting design, integrating IGCT and freewheeling diode in one package, simplify power circuit layout
2. Press-pack hockey puck structure, superior thermal conductivity and high surge current withstand capability
3. Snubberless turn-off technology, reduce peripheral buffer components and improve system reliability
4. Low on-state voltage and low switching loss, boost energy efficiency for heavy-load continuous operation
5. High mechanical robustness, shock and vibration resistance for harsh industrial cabinet environments
6. Standard clamping installation, matched with ABB medium voltage converter power assembly

Application Scenarios

• ABB medium voltage variable frequency drives
• Static Var Compensator (SVC) & SVG power quality control systems
• Wind & solar high-power converter cabinets
• Railway traction and marine propulsion power converters
• Mining and metallurgy large-capacity motor speed regulation
• Power grid energy conversion and power plant auxiliary equipment renovation

Our Service

✅ ABB 5SHX2645L0006 in stock, fast quotation ✅ Strict full performance inspection before packing ✅ Global shipping, FOB / CIF / DDP trade terms supported ✅ Professional technical support for compatibility verification ✅ Warranty service for qualified products ✅ PI, commercial invoice and packing list available for international trade
