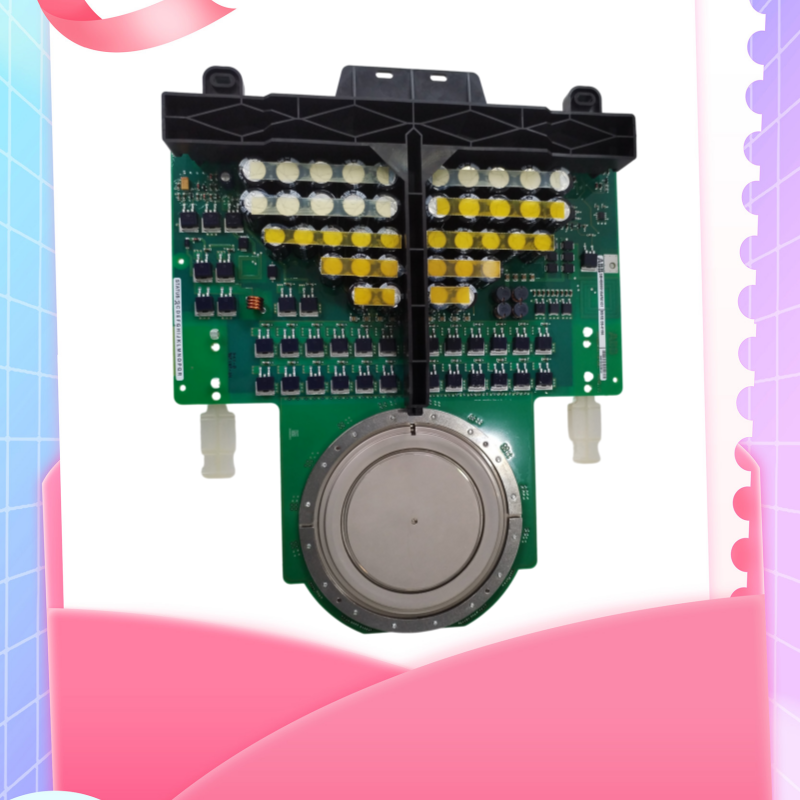

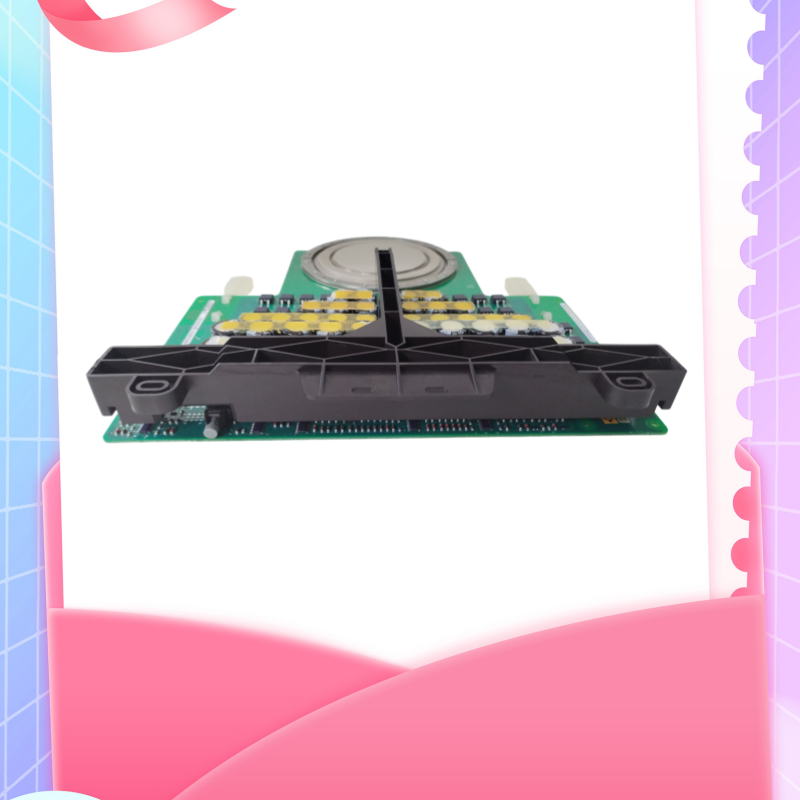

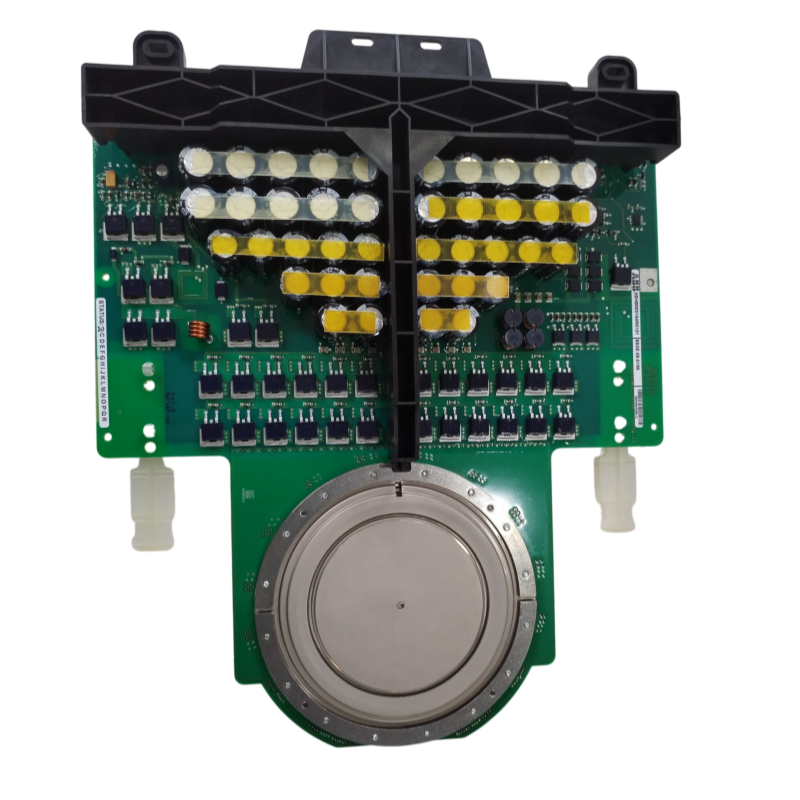

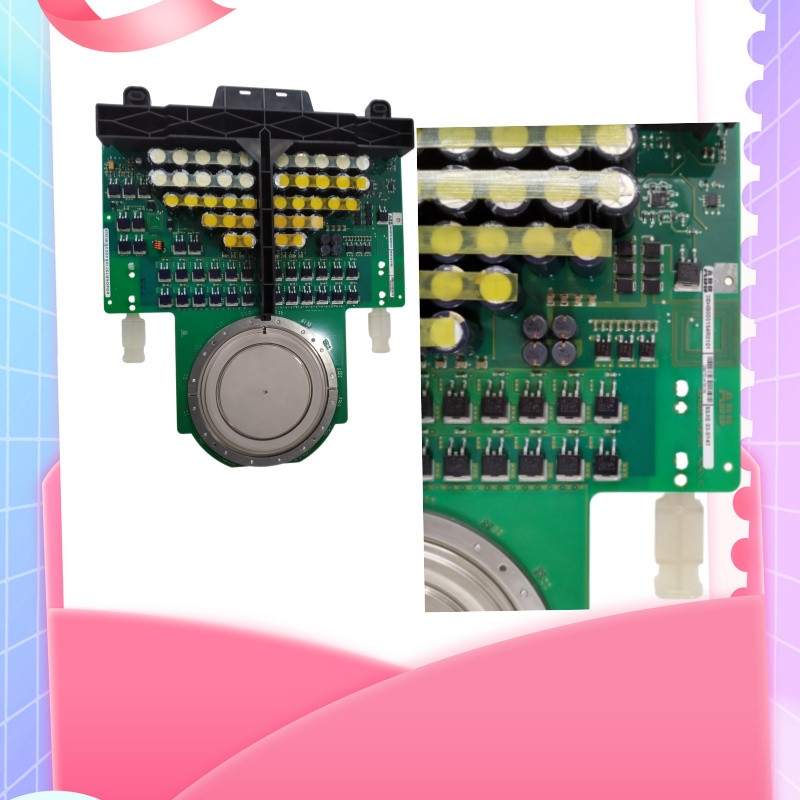

ABB 5SHX2645L0004 Reverse Conducting IGCT Module

Product Overview

ABB 5SHX2645L0004 is a high-power reverse conducting IGCT (RC-IGCT) press-pack semiconductor device with ordering code 3BHL000389P0104. It integrates the IGCT and freewheeling diode inside one hockey-puck press-pack housing. This design eliminates separate external diodes and simplifies the power circuit layout for medium voltage power conversion systems.

This RC-IGCT supports snubberless turn-off, low conduction loss and high surge current capability. Widely used for ABB ACS6000 / PCS6000 medium voltage drives, static var compensators and renewable energy converters. All units pass strict factory performance testing before shipment, ideal for equipment overhaul, emergency spare backup and field replacement.

Key Specifications

• Part Number: 5SHX2645L0004
• Order Code: 3BHL000389P0104
• Brand: ABB
• Product Type: Reverse Conducting IGCT (RC-IGCT)
• Package: Press-pack / Hockey puck
• Blocking Voltage VDRM: 4500 V
• Controllable Turn-off Current ITGQM: 2645 A
• Non-repetitive Surge Current ITSM: 6200 A
• On-state Voltage: ~2.9 V @ rated current
• Junction Temperature: -40℃ ~ +125℃
• Cooling Method: Double-sided water cooling / forced air cooling
• Gate Trigger: Optical fiber trigger
• Weight: Approx. 2.6 kg
• Condition: Original new / Fully tested refurbished available
• Compliance: IEC power electronic standards, CE
• Suitable Industries: Metallurgy, mining, power plant, new energy, marine propulsion

Features

1. Reverse conducting integration, built-in freewheeling diode, reduce component count and cabinet volume
2. Press-pack hockey puck construction, outstanding thermal conductivity and high surge withstand capacity
3. Snubberless turn-off technology, cuts peripheral buffer circuits and improves system reliability
4. Low on-state voltage and switching loss, high efficiency under continuous heavy-load operation
5. Double-sided pressure cooling design, perfect for high power density converter cabinets
6. Standard clamping installation, compatible with ABB medium voltage power assemblies

Application Scenarios

• ABB ACS6000 & PCS6000 medium voltage variable frequency drives
• Static Var Compensator (SVC) / SVG power quality control systems
• Wind & solar high-power converter cabinets
• Mining and metallurgy large-capacity medium voltage motor speed regulation
• Marine propulsion power converters
• Power plant auxiliary equipment renovation and spare parts replacement

Our Service

✅ ABB 5SHX2645L0004 in stock, fast quotation ✅ Strict full performance inspection before packing ✅ Global shipping, FOB / CIF / DDP trade terms supported ✅ Professional technical support for compatibility verification ✅ Warranty service for qualified products ✅ PI, commercial invoice and packing list available for international trade

FAQ

Q1: Is ABB 5SHX2645L0004 brand new original? A: We supply original new and fully tested refurbished IGCT modules. Please advise your requirement when sending inquiry.

Q2: What is the lead time of 5SHX2645L0004? A: Most units are in stock, goods can be shipped within 1–3 working days after payment confirmation.

Q3: Can you confirm compatibility with my medium voltage converter? A: Yes, send your converter model number, our technical team will check compatibility free of charge.

Q4: What payment terms do you accept? A: T/T, L/C, Western Union are available for international orders.
