ABB 5SHX2646L0004 IGCT Module | Symmetric Integrated Gate Commutated Thyristor

Meta Title: ABB 5SHX2646L0004 IGCT Module | 4500V Medium Voltage Power Semiconductor Meta Description: Buy original ABB 5SHX2646L0004 symmetric IGCT press-pack module. 4.5kV high power IGCT for MV drives, STATCOM, HVDC, marine propulsion, oil & gas converters. In stock, worldwide delivery.

Product Overview

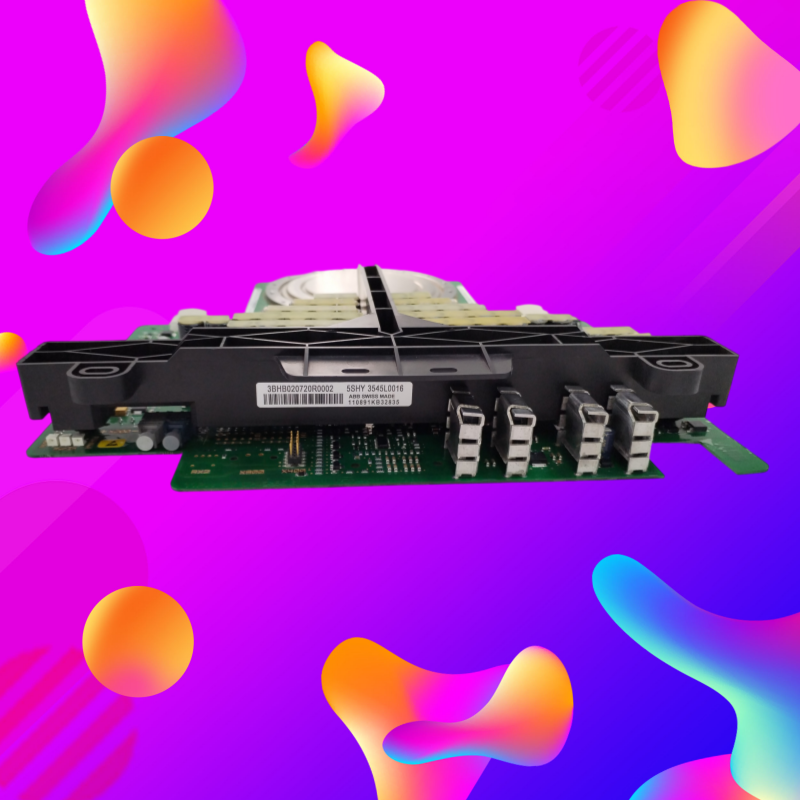

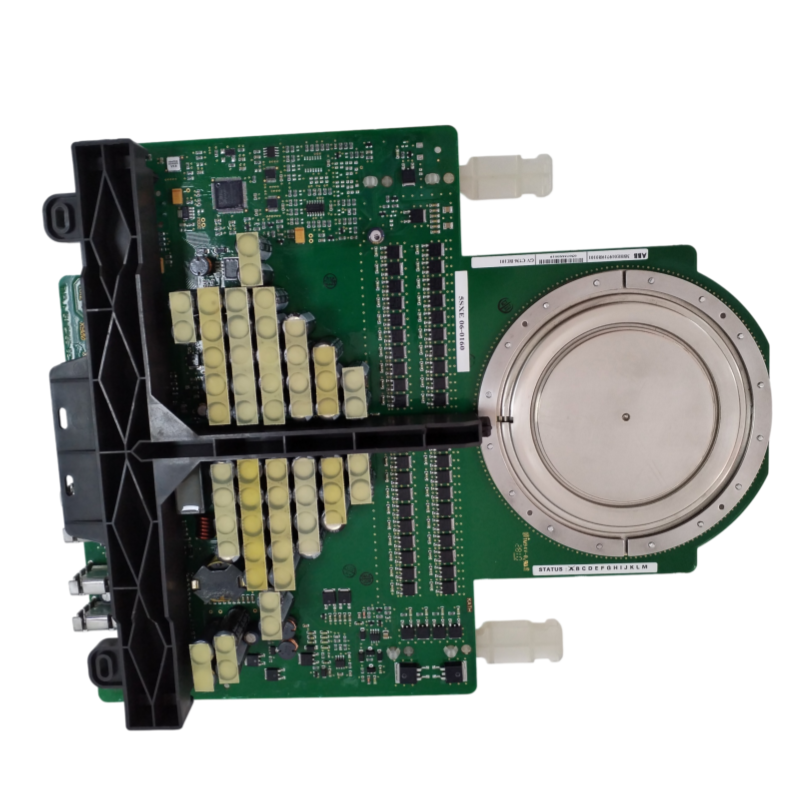

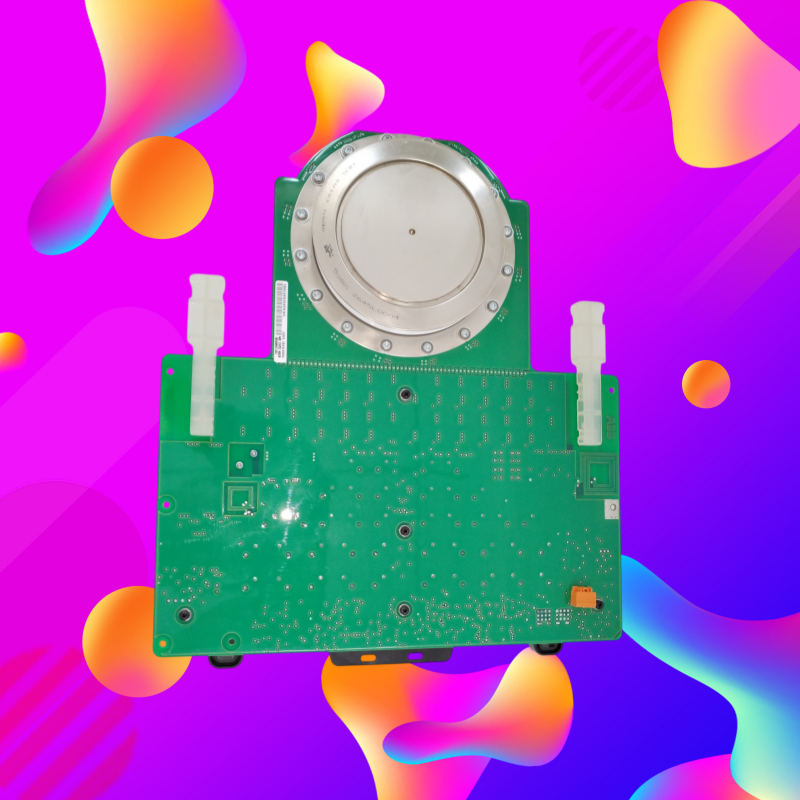

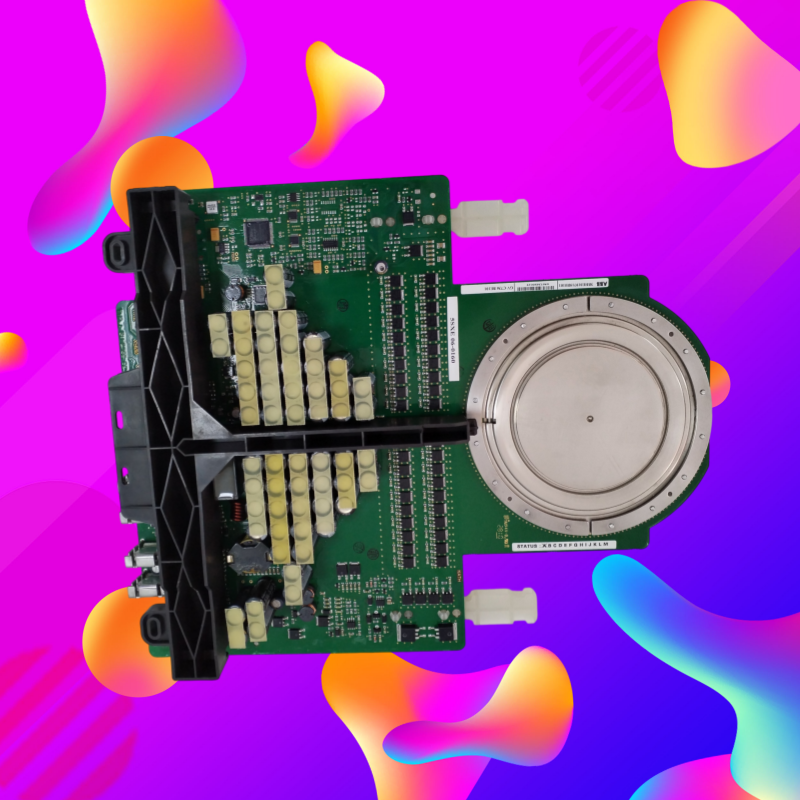

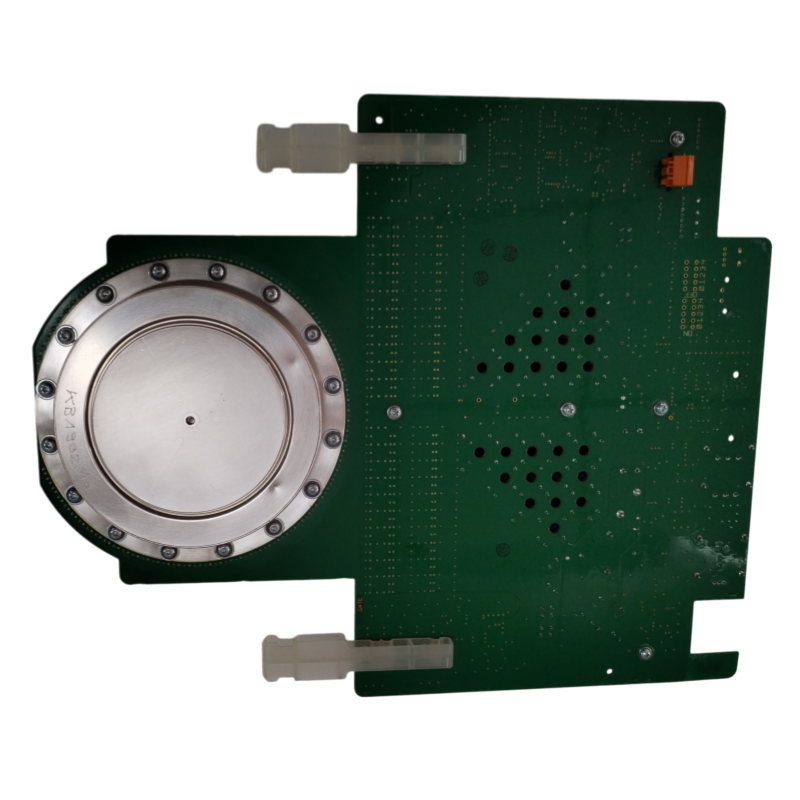

ABB 5SHX2646L0004 belongs to ABB 5SHX series symmetric IGCT (Integrated Gate Commutated Thyristor). This press-pack power semiconductor module integrates the thyristor chip and fiber-optic gate drive assembly, featuring bidirectional voltage blocking capability. It combines ultra-low conduction loss and reliable fast turn-off performance, designed for megawatt-level medium voltage power conversion systems.

Built for heavy-duty continuous operation in harsh industrial environments, ABB 5SHX2646L0004 is widely used in high power converters that require bidirectional power flow. It serves as the core switching component for grid stabilization, heavy industry variable speed drives, marine power and oil & gas power conversion equipment.

Key Features of ABB 5SHX2646L0004

• Symmetric IGCT design, bidirectional voltage withstand for four-quadrant operation
• Press-pack package, compatible with forced air cooling and liquid water cooling
• Integrated fiber-optic gate trigger, superior galvanic isolation and high noise immunity
• Low on-state voltage drop, reduces total power loss and thermal load
• Fast switching speed, supports snubberless topology to simplify converter design
• Excellent surge current and overload endurance for transient load spikes
• Wide junction temperature range: -40°C ~ +125°C
• High power density, compact press-pack form factor for high-power stacks
• Long service life, stable performance for 24/7 continuous heavy-duty operation
• Compliant with IEC 60747, CE and RoHS industrial standards

Technical Specifications

Core Application Scenarios

ABB 5SHX2646L0004 symmetric IGCT supports bidirectional energy flow, making it ideal for high-power medium voltage conversion projects where regenerative power control is required.

 1. Power Grid & Flexible Power Transmission

Applied in STATCOM, SVC reactive power compensation and FACTS flexible AC transmission systems. It stabilizes grid voltage, suppresses power fluctuation and improves power quality. Also used in HVDC converter stations for DC-AC energy conversion and power dispatch of large power plants.

2. Medium Voltage Drives for Heavy Industry

Core switching device for ABB ACS6000 and other medium voltage variable frequency drives. Used for large fans, water pumps, cement rotary kilns, metallurgical rolling mills, mining crushers and conveyor motor speed regulation. It handles heavy starting torque and variable loads, saving energy for continuous production lines.

3. New Energy & Energy Storage Systems

Adopted in large wind turbine grid converters and centralized PV station inverters. Supports bidirectional power flow for grid-connected energy storage converters, enabling peak shaving, frequency regulation and stable grid interconnection of renewable energy power plants.

4. Oil & Gas Industry

Medium voltage converters for offshore platform power supply, high-power compressors and oil pipeline pump drives. Withstands wide temperature variation and high vibration in remote field environments for reliable long-time operation.

H3: 5. Marine Propulsion & Ship Power System

Medium voltage ship propulsion converters and marine auxiliary power supplies. The symmetric IGCT design suits regenerative load conditions on vessels, meeting strict marine power reliability requirements.

6. Rail Transit & Large Special Power Supply

Traction converters for electric locomotives and metro auxiliary power equipment. Also used for high-power industrial UPS and emergency power supply for critical infrastructure.

 Why Buy ABB 5SHX2646L0004 From Us

We supply original tested ABB 5SHX2646L0004 IGCT press-pack modules for power electronics and power system customers worldwide.

• Original units in stock, fully tested before shipment
• Inspection test report available upon request
• Professional technical consultation for stack retrofit and replacement
• Global shipping covering Asia, Europe, Middle East, South America and Africa
• Competitive pricing for bulk orders

Frequently Asked Questions

What is ABB 5SHX2646L0004?

ABB 5SHX2646L0004 is a symmetric press-pack IGCT module of ABB 5SHX series, 4500V rated, used for high-power medium voltage converters requiring bidirectional power flow.

 Can I use 5SHX2646L0004 to replace asymmetric IGCT?

Not directly. Symmetric IGCT supports bidirectional blocking, while asymmetric types only block voltage in one direction. You need to check converter topology, gate drive and cooling system before replacement.

 What are the main industries for 5SHX2646L0004?

It is widely deployed in power grid FACTS equipment, MV industrial drives, wind & solar energy storage, oil & gas offshore power, marine propulsion and rail traction converters.

 What cooling method does ABB 5SHX2646L0004 require?

It supports water cooling or forced air cooling. Press-pack installation must apply 50 kN specified clamping force to guarantee thermal contact and electrical performance.
