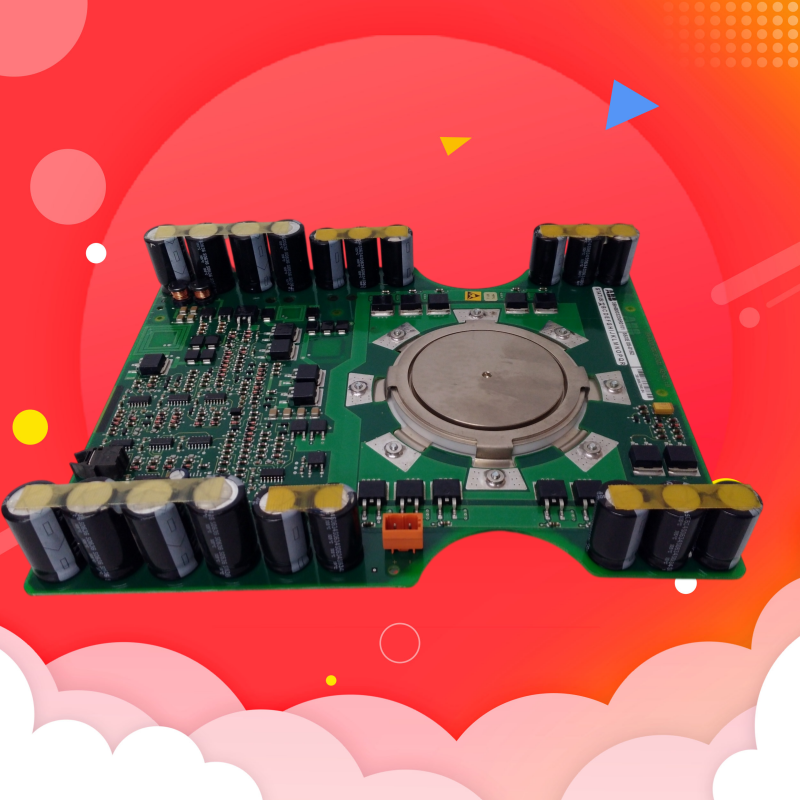

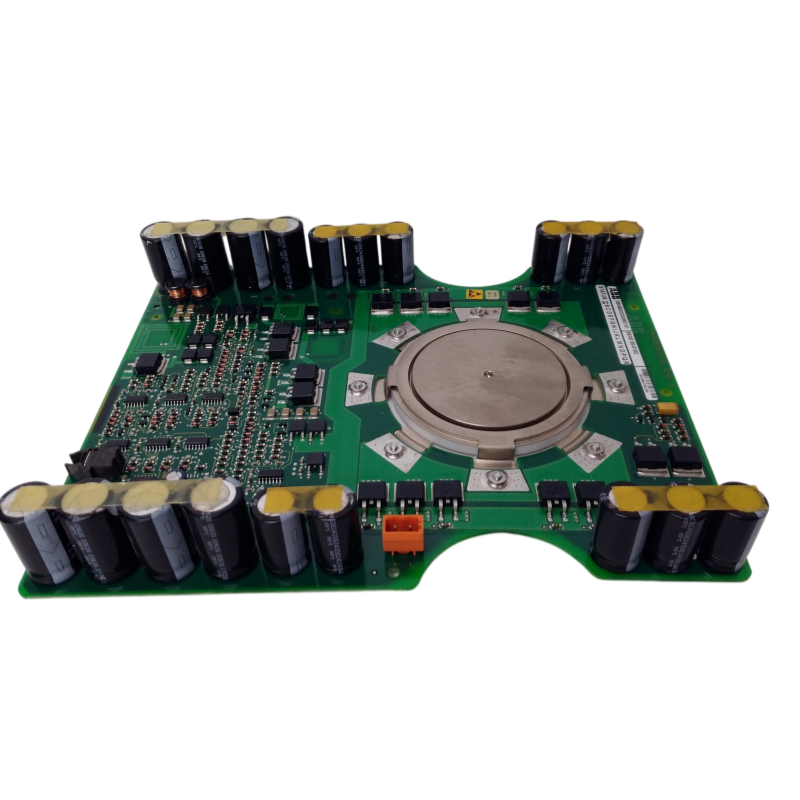

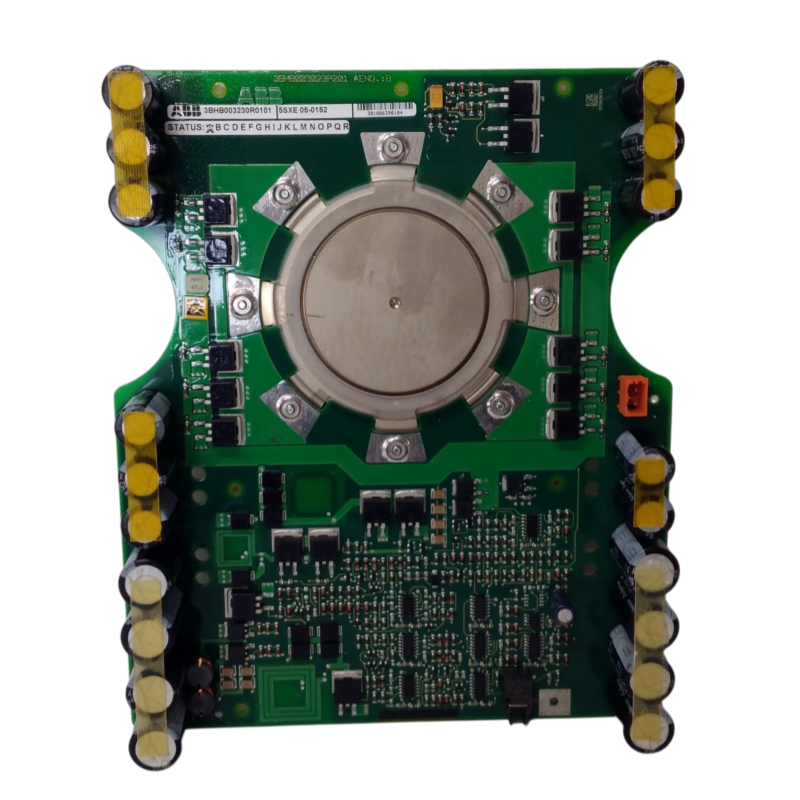

ABB IGCT Module 5SHX10H6004 (3BHB003230R0101) with Gate Unit 5SXE05-0152 (3BHB003023P201)

Product Overview

In high-power industrial applications, the synergy between the power switch and its controller is critical. This page details the ABB 5SHX10H6004 IGCT module (Part No. 3BHB003230R0101) and its dedicated gate drive unit, the 5SXE05-0152 (Part No. 3BHB003023P201).

The 5SHX10H6004 is a robust Integrated Gate Commutated Thyristor designed for medium-voltage converters and drives. The 5SXE05-0152 gate unit ensures precise timing, protection, and reliable switching of the IGCT. At XINGRUIJIA, we supply both components as 100% original, factory-sealed units, ensuring your system maintains its designed performance and safety standards.

Technical Specifications & Compatibility

IGCT Module: 5SHX10H6004

• Model: 5SHX10H6004
• ABB Part Number: 3BHB003230R0101
• Type: Integrated Gate Commutated Thyristor (IGCT)
• Voltage Class: 4.5 kV - 6.5 kV (Typical Application Range)
• Key Feature: Low switching losses, high surge current capability.

Gate Drive Unit: 5SXE05-0152

• Model: 5SXE05-0152
• ABB Part Number: 3BHB003023P201
• Function: Provides isolated gate drive signals, monitors device status, and implements protection logic (over-current, over-temperature).
• Compatibility: Specifically designed to drive the 5SHX series IGCTs, including the 5SHX10H6004.

Note: Always ensure the firmware version of the 5SXE05-0152 matches your drive system’s requirements. Our team can help verify compatibility.

Real-World Application Scenarios

Where do these specific components work together? Here are common industrial environments relying on the 5SHX10H6004 and 5SXE05-0152 combination:

1. Medium-Voltage Variable Frequency Drives (VFDs)

In industries like mining, cement, and steel, large motors (2MW+) require precise control. The 5SHX10H6004 handles the high power, while the 5SXE05-0152 ensures clean, fast switching. This pair is frequently found in ABB ACS6000 series drives, controlling crushers, kilns, and rolling mills.

2. Wind Turbine Power Converters

Wind generators produce variable frequency AC. The converter system uses IGCTs like the 5SHX10H6004 to rectify and invert this power for the grid. The 5SXE05-0152 gate unit’s reliability is crucial here, as maintenance access to offshore turbines is difficult and costly.

3. Static Var Compensators (SVC) & HVDC Links

For grid stability, SVCs use thyristor valves to regulate reactive power. The high-speed switching capability of the 5SHX10H6004, driven by the precise 5SXE05-0152, allows for rapid response to grid fluctuations, preventing voltage collapses.

Why Source from XINGRUIJIA?

• Complete Pair Availability: We stock both the power module (5SHX10H6004) and its specific gate driver (5SXE05-0152), simplifying your procurement process.
• Original Quality Assurance: Counterfeit gate units can cause catastrophic IGCT failure. We guarantee every 3BHB003023P201 and 3BHB003230R0101 is genuine ABB.
• Technical Support: Not sure if you need the P201 or another revision? Our engineers can check your drive’s serial number to confirm the exact part required.
• Fast Global Logistics: Minimize downtime with our expedited shipping options to over 200 countries.

Ordering Information

• IGCT Module: 5SHX10H6004 (3BHB003230R0101)
• Gate Unit: 5SXE05-0152 (3BHB003023P201)
• Condition: New, Original Packaging
• Lead Time: In Stock (Ships within 24-48 hours)

Need a quote for the 5SHX10H6004 and 5SXE05-0152 pair? Contact XINGRUIJIA today for competitive pricing and expert technical assistance.
